Analog Signal 4-20mA Water Liquid Level Sensor/Transmitter

Product Description

Product Description

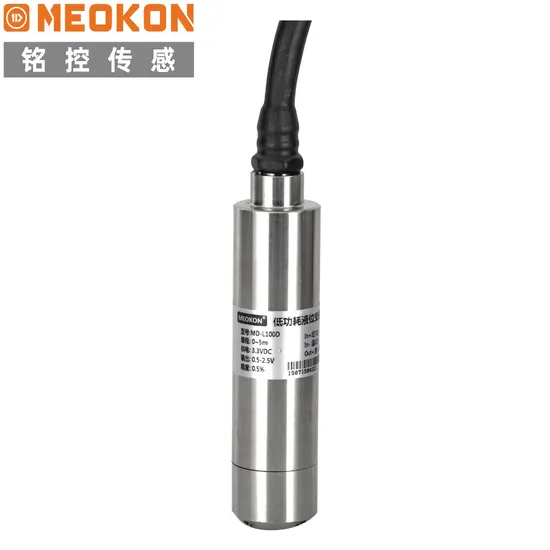

The MD-L100 series liquid level transmitter measures liquid level or water depth based on the principle of hydrostatic pressure. It uses a high-performance isolating membrane diffused silicon sensor,and then uses sophisticated temperature compensation technology and water sealing technology to convert static pressure to standard electricity.Signal output.
The MD-L100 series liquid level transmitter adopts a 304 stainless steel shell and a shielded polyurethane cable to ensure that it has non-excellent corrosion resistance, reliable for water level measurement in reservoirs,rivers,sewage treatment,urban water supply,etc.
Technical Characteristics:
IP 68 waterproof design Anti-electromagnetic interference design to ensure the stability of the signal
304 stainless steel shell with polyurethane cable, strong media compatibility 12~28V wide power supply
Application:
Civilian pool
Water tank level measurement
Hydrology and water conservancy system
Other liquid level measurement
Marine level measurement
Urban drainage system
Oil level measurement of locomotive oil truck
Water level measurement of rivers and lakes
Specification:

Range	0~1m...5m...10m...100m H2O
Overload capacity	200%
Optional	Industrial explosion-proof shell
Transmission distance	≥1Km(4-20mA)
Accuracy	0.5%FS
Long-term stability	Typical: ±0.2%FS/year
Zero temperature drift	Typical: ±0.02%FS/ºC, Max:±0.05%FS/ºC
Sensitivity temperature drift	Typical: ±0.02%FS/ºC, Max:±0.05%FS/ºC 12~28V(Typical 24V)
Power supply	12~28V(Typical 24V)
Output	4~20mA/RS485
Working temperature	-10~60ºC
Compensation temperature	-10~60ºC
Storage temperature	-20~85 ºC
Electrical protection	Anti-reverse connection protection, over-voltage protection
IP rate	IP 68
Measuring medium	Water or liquid incompatible with stainless steel
Pressure connection	throw-in
Shell material	304SS

---
