US$28,000.00-32,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Cutting Ability
High Speed
Loading Container Type
20GP(DC)
Transport Package
by Film Package
Specification
3500× 2000× 1500mm
Product Description
Function:The machine is used for cutting slabs and squaring block.

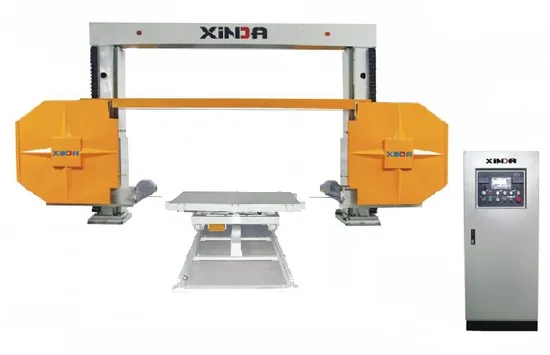

Brief introduction of KXJ1500 wire saw machine:
1,KXJ1500 machine has steady structure, including a crossbeam,two upright column,square box,air compressor tensioning unit,two big flywheel. Left side install a driven big flywheel and air compressor tensioning device. tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-35m/s via inverter. the machine can cut different kind of stone material.
2,In order to reduce the diamond wire wear and keep the diamond wire steady , the machine are equiped with two guide wheels (Diameter: 300mm).
3. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
4. The machine will stop automatically and display failures on the screen if wire broken.
5.The machine has a water spray system. if no water or not enough water,the machine will automatically stop.
Technical parameters:
| Parameters | KXJ1500 |
| Diameter of Wire | Φ8-Φ11 |
| Length of Wire | 17300mm |
| Speed of Wire | 0-40m/s |
| Worktable Size | 3000×2000mm |
| Worktable Whether Revolve | 360° |
| Worktable Load Capacity | 20T |
| Range of Cutter Movement | 1600mm |
| Max Cutting Size(L×W×H) | 3500×2000×1500mm |
| Production Efficiency | 1-2m²/h(marble) 0.5-2m²/h(granite) |
| Main Motor Power | 11KW |
| Water Consumption | 3m³/hour |
| Overall Dimension | 8200×5700×4300mm |
| Diameter of Guide Wheel | Φ300mm |
| Total Power | 23.94KW |
| Total Weight | 9T |
Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
>>
