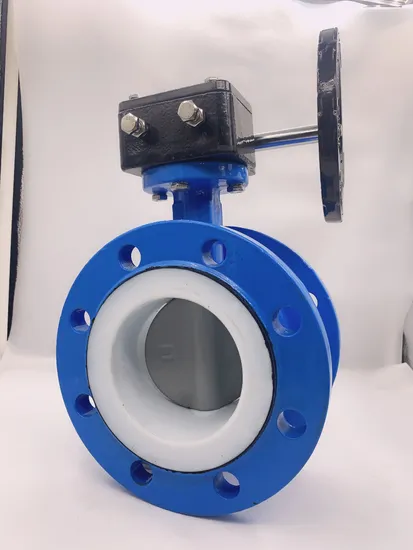

Environmentally Friendly PTFE Soft Sealed Ball Iron Turbine Flange Butterfly Valve with Good Sealing Performance

US$10.00-100.00 10 Pieces (MOQ)

Basic Info.

Model NO.
D371XQ-10/16Q
Connection Form
Wafer
Structure
Centre Sealing
Seal Form
Force Sealed
Valve Stem
Normal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Normal Temperature (-40°C<T<120°C)
Material of Seal Surface
Soft Sealed
Valve Body
Casting
Standard
GB/T12238 API609 BS5155 En593
Application
Industrial Usage, Water Industrial Usage
Transport Package
Wooden Case Packing
Specification
DN32-DN1600
Trademark
FVT
Origin
Tianjin, China
HS Code
8481809000
Production Capacity
100000pieces/Years

Packaging & Delivery

Package Size
600.00cm * 250.00cm * 250.00cm
Package Gross Weight
10.000kg

Product Description

Product feature
1,Strong connection, short structure length, can be used at the end of the pipeline
2,Beautiful appearance and easy connection
3,Tight connection to prevent leakage
4,The material of each part can be customized according to the requirements
NO.1 234567
NameStemHandle leverShaft sleeveSealing ringBodySeatDisc
MaterialIron barCast iron turbine headPolymer compositePTFEDuctile ironPTFEDuctile iron
Product parameter
Face to Face DesignISO 5752-20/EN558-1/GB-T12221
Flange ConnectionANSI Class125/150 JIS 5/10/16K AS2129 TableD/E BS4504 EN1092 PN6/10/16
Working Pressure10/16bar
Testing PressureShell Test:24bar / 2.4Mpa
Seal Test:17.6bar/1.76Mpa
Working Temperature-10°-120°
Nominal diameterDN32-DN300
Optional material
(According to your requirements to give you different material choices)
NO.BodyDiscSeatStemType of Operation
1Ductile ironDuctile ironEPDMGalvanized 45 gauge steelStamped iron handle
2Stainless steel 304/316/316LStainless steel 304/316/316LPTFEStainless steel 420/431
/304/316/316L		Cast iron handle
3Aluminium alloyAluminum bronze NBRDie cast aluminum handle
4Cast steelStainless steel sulfide polytetrafluoroethyleneHeat-resistant EPDMMotorized
5Cast ironDuctile iron covered with nylonWear-resistant EPDMStainless steel stamped handle
6Aluminum bronze Ductile iron covered with vulcanized rubberFluorine rubberStainless steel cast handle
7 Stainless steel coated with PTFESilicone rubberpneumatic
8 Ductile iron spray epoxy resinHypalon rubberDuplex stainless steel 2205/2507/1.4469/1.4529Worm gear box
9 Stainless steel spraying HalarHNBR Worm gear box with signal
10 Stainless steel sprayed nano-ceramicsNeoprene rubberHydraulic maneuver
11 Stainless steel coated with tungsten carbideRubber without copper or zincCopper alloy
12 Duplex stainless steel 2205/2507/1.4469/1.4529Insulating rubber

Optional parameter
NO.TemperatureStressstressSpecificationFlange connection standardStructural form
1-20~80°PN6GB/T 12238DIN2543-2545Center line
2-20-120°PN10-16API 609ANSI B16.5Double eccentric
30-150°PN25BS 5155JIS B2220Triple eccentric
4-20-200°JIS5K/10KEN 593BS4504
5 125LB/150LB EN1092
