Door Shell Forming Line by Hiden Cap

Product Description

Refrigerator Door Shell Metal Forming Line
This line main consists of automatic loading machine,, punching machine, transition station 1, both side bending machine1,both side bending machine 2, transition station 2, corner flanging machine for the end, Centring, straight flanging and handle flanging machine for the end, manipulator with sucker, unloading belt line and pneumatic system, hydraulic system, electrical control system etc.
Main technical data
Material: (0.5mm as detection standard) Uncoated cold rolled steel. Thickness 0.5 - 0.6 mm; Galvanized steel with a polymer coating; Thickness 0.5 - 0.6 mm; Stainless steel. Thickness 0.5-0.6 mm; processing range( after forming)
Width:490-600mm;
Length:380-1750mm (with end flanging product);
Working mode: In the length direction, it adopts clamp to carry the metal sheet finishing punching.
Cycle time: less than 30s/p
More Photos for Reference

Loading

Punching Machine

90 degree both side bending machine + R Both side bending

corner flanging machine for the end

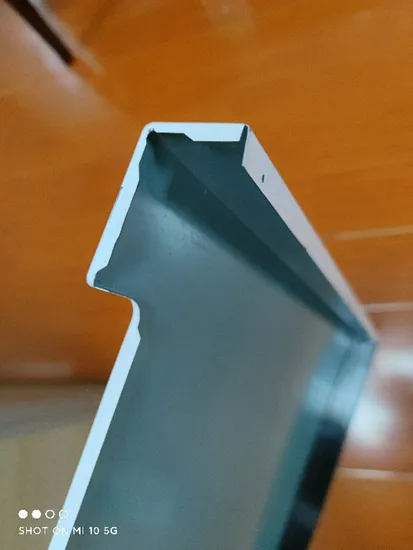

Flanging Machine for the End
Unloading
