High-Efficiency T-Trap Magnetic Separator for Liquids or Slurry Cleaning-Stay Warm Version

Product Description

Product Description

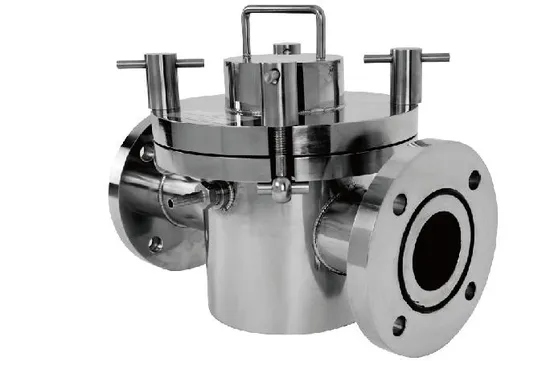

T-trap magnetic separator used to remove ferrous contamination from liquids or slurries which are conveyed by pressure. High temperature resistance is available if needed.
And Stay warm version of T-trap magnetic separataor could maintain the temperature of the material in very well condition. Applicable to different application scenarios.
Detailed Photos
Product Parameters
1) Magnetic Performance: 8'000GS-12'000GS
2) Material of housing and other parts: 304 stainless steel/316 stainless steel
3) Surface finish: Outside housing: Sand blasting; Inside housing: Polished
4) Inside magnets: Strong permenent rare earth magnets
5) Working Temp.<: 80ºC, 100ºC, 120ºC, 150ºC,

Pipeline Normal Diameter	Model No.	A mm	B mm	C mm	D mm	E mm
DN25	SCXD25B	159	25	187	350	217
DN32	SCXD32B	159	32	187	350	217
DN40	SCXD40B	159	40	214	360	217
DN50	SCXD50B	159	50	244	360	217
DN65	SCXD65B	159	65	244	360	217
DN80	SCXD80B	159	80	244	400	217
DN100	SCXD100B	159	100	260	400	217
DN125	SCXD125B	272	125	340	570	350
DN150	SCXD150B	320	150	388	700	405
DN200	SCXD200B	350	200	428	730	425

Certifications
Packaging & Shipping
SunMag provide different packing methods to protect the magnetic separator in good condition to suit for Air, Internationa express, Sea shiping methods.
Goods will be packed into carton, wooden pallet, or wooden case.
Or if the customer has specific requirements of packing, we will arrange the packing according to this.
Company Profile
Sun Magnetic Sys-Tech Co., Ltd founded in 2001 by the founder Mr. Sun Jianguo in Beijing, China, as a professional and well equipped manufacturer of permanent magnetic system, we have more than 20 years of experience in R&D, design and manufacture.
SunMag foucus on design an manufacture of magnetic separators to remove ferrous contaminants from dry solids(powder & granule), liquids and slurries in the processing industry, and provides customers with professional solution, top quality and great service.
With quality assurance of ISO9001 certification, our products are mainly exported to Southeast Asia, Europe, North and South America and Australia, and widely used in food industry, pharmaceuticals Top quality and continuous improvement are perpetual commitment to customers in the entire process of service.
Exhibitions Attended:
Domestic market:Lithium battery exhibition, Packing exhibition, Food processing exhibition, Plastic exhibition Pharmaceuticals exhibition, and so on.
Abroad market: GEAPS(USA), IAOM(USA & Southeast Asia),IPPE(USA), VICTAM(Europe & Thiland), IDMA(Türkiye), Eurotier(Europe),
For more specific information of our all kinds magnetic separator, you could visit our website.
Our Advantages
1) Strong rare earth magnets
2) Easy-clean type
3) Food grade and sanitary grade options
4) Anti-pressure ability
5) High temperature resistance available
6) Stay warm construction option

FAQ
Q1:How about the cleaning effect of SunMag Magnetic Separators?
A: ABOVE 99%.
Q2: How about your delivery date?
A: 15-40 days.
Q3: Do you test all your magnetic separtor before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, L/C, VISA, or other payment .
Q5: Could the magnetic separator be customized?
A: All the magnetic separator could be customized according to the customer's specific requirements.
Q6: Do you have a factory?
A: We are a manufacturer, all the magnetic separators are designed and produced by ourselves, and we have our own technical R&D team.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
