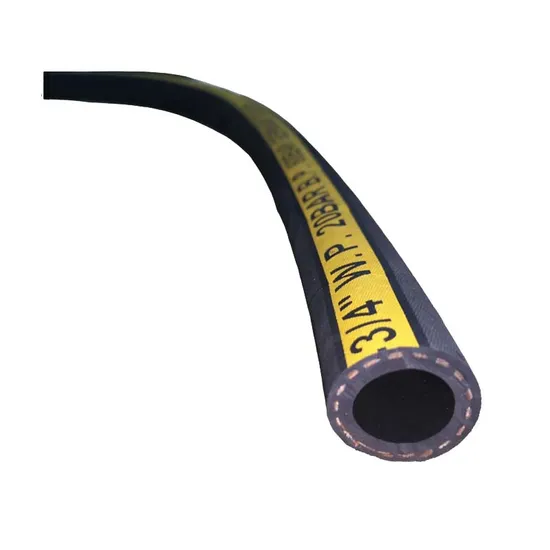

Multipurpose /Water/Oil/Air W. P. 300psi (20Bar) Rubber Hose

Product Description

Product Description Tube: NR & SBR synthetic rubber, black color.
Reinforcement:1ply or 2ply high tensile polyester threadbraiding,Multi ply high tensile fabric
Cover: NR & SBR synthetic rubber,smooth or wrapped surface,black,yellow,red available
Application: Mainly used for conveying of air, inert gas and waterin mining, construction, engineering, shipbuilding, steel productionetc.
Temperature:-40ºC(-104 F)to 70ºC +158 F

ID (inch)	ID (mm)	Wall (mm)	W.P. (bar)	B.P. (bar)	Radius (mm)	Length Max. (m)	Weight (kg/m)
3/16"	5	3,5	20	60	30	100	0.15
1/4"	6	3,5	20	60	35	100	0.19
5/16"	8	3.5	20	60	50	100	0.23
3/8"	10	3.5	20	60	60	100	0.28
1/2"	13	4,0	20	60	60	100	0.41
5/8"	16	4	20	60	90	50	0.51
3/4"	19	4.5	20	60	110	50	0.77
1"	25	5,0	8	60	130	50	0.89

Detailed Photos

Certifications
Packaging & Shipping
Packing Details :1. Colorful nylon tape wrapped coils2. Transparent PVC sea worthy tape wrapped coils3. Plastic hose reels4. Wooden hose reels5. Pallets with hose coils6. Wooden case with hose coilsDelivery Details :1. Less than 1000 Meters will delivery within 7days;2. Less than 5000 Meters will delivery within 10 days.3. Less than 10000 Meters will delivery within 15 days.4. One full container will be delivery within 30 days. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!

---
