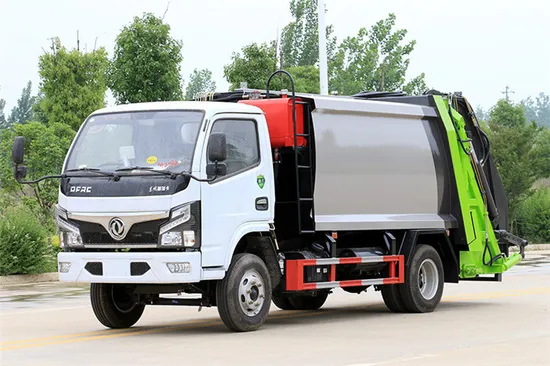

Chengli Small Truck Rear-Mounted Compression Garbage Truck

Product Description

Parametersofcompressed
Model introduction:
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system. The whole vehicle is fully sealed. All the sewage in the process of self-compression, self-dumping and compression enters the sewage compartment, which completely solves the problem during the garbage transportation processSecondary pollutionThe problem avoids inconvenience to people. The key components are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety, etc. A variety of rear bucket flip mechanisms or garbage bin flip mechanisms are available.
Chassis configuration:
Dongfeng Dolika7THE FANG COMPRESSED GARBAGE CAR ADOPTS A SPECIAL chassis FOR DONGFENG D6 GUARD CAR, 3308MM wheelBASE,Yuchai 140Horsepower engine, Wanliyang 5-speed transmission, 7.00R16 steel wire tire, 192mm double beam, 1.8T/3.5T front and rear axle, air brake, original air conditioner (optional double row seats), national joint warranty.
Top configuration table:

Order	Name	Specifications and models
1	Chassis name/model	Dongfeng D6 series
2	Wheelbase (mm)	3308
3	Box volume m3	6
4	Box thickness mm	WISCO Q345 low-allow alloy manganese steel (side four bottom four) flip mechanism scraper, curved bottom plate, slide adopts Q710 high-strength plate
5	Sewage tank	A sewage tank on the front side of the large box and an integrated sewage tank at the bottom of the filler
6	Box shape.	Arc, the side plate is a one-time molding of the whole plate, no welding
7	Hydraulic cylinders	Hypris
8	Oil pump	Changyuan
9	Multi-way valve	Zhongmei, Yangzhou, Jiangsu
Ten	Hydraulic tubing	Bonway hydraulic tubing (high density double-layer 24Mpa)
11	System rated pressure	18MPa
12	Compression ratio	≥0.8
13	Compaction method	Two-way creep compression
14	Control system	German Siemens PLC and German photoelectric sensors
15	Loading time for a single cycle	≤24s
16	Time to shirking garbage	≤35s
17	Control mode	Independent operation of the flashlight (standard remote control)
18	Key component structure	Reinforced with cast steel
19	Push shovel and skateboard slider	High wear-resistant nylon
20	Vehicle design.	Simulated with SW 3D software
21	Back hanging barrel method	Standard: back bucket type (can be hung with national standard 240 plastic bucket or iron bucket or triangle bucket)
22	Body color/text	Body color and text painting can be customized according to customer requirements
22	Attachment	Profile lights, side lights, and work lights

Product highlights: Larger loading capacity: boxes with the same volume are 5% more loaded per side compared to the previous generation (7 barrels of 240L trash cans). Fault-prone position: the force level of the scraper skateboardIt is prone to force deformation, resulting in job instability. The new generation of products developed by our company have been innovated in materials and design to make the performance of the whole vehicle more stable and improve its service life. Working hours: The new generation of compressed garbage trucks produced by our company has a loading time of less than 25 seconds at idle speed, and the loading time is the longest time used by the vehicle, so it is economical fuel, reduces costs, and improves work efficiency. Wear parts: The scraper is the most force on the vehicle, and the slide is the most worn. Our company's slide adopts high-strength Q710 for more than 8mm, and the separate split in the middle of the scraper is strengthened, which has greater bearing capacity, stronger wear resistance, and greatly increases service life. Oil pump: The oil pump is the main component of the compression vehicle. Our new generation of oil pumps are customized for oil pump factory, with stable performance and extremely low failure rate. 6. Noise: The new generation of compression vehicles has added photoelectric sensing devices to control the travel distance of each action, reduce the metal sound generated by collision and scratching, and effectively improve noise pollution.
PrecaTIONS: During operation, unrelated personnel should avoid approaching the vehicle, especially the rear of the vehicle.
2., Garbage should be evenly placed in the packing hopper, not concentrated on one side to offset the center of gravity of the vehicle, or at the mouth of the packing bucket
Over-high storage along the garbage heap affects the even distribution of filled garbage and garbage in the garbage bin.
3, Attention should be paid to observation during the filling operation. If you find large pieces of other garbage (non-household garbage) that cannot be compressed, it must be stopped in time
Stop the operation and continue the operation after removal to avoid damaging the working devices of the vehicle, and strictly prohibit the compression of construction waste .
4., When lifting or dropping the filler during the unloading operation, make sure that the surrounding area is safe, operate carefully, and never on the slope.
Lift the filler, otherwise the center of gravity will move back and cause a rollover accident.
5,The filler is not allowed to enter normal operation before falling and locking.

---
