Product Details
Product Description
Product Description
Product Name

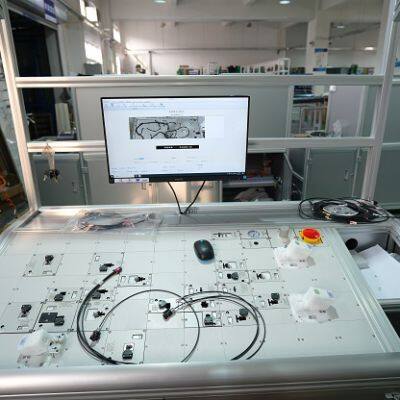

| Low Voltage Wire Harness Testing Bench Top
|
Power
| Electricity
|
Type
| OEM/Customized
|
Brand Name
| Cleanknow/Customized
|
Model Number
| LVT800 |
Display
| Monitor Size on demand
|
Interface
| USB Interface/Manual
|
Overview:
Low Voltage Testing system can be applied to test open, short and dislocation circuits of wire harness.
It is a high-performance wiring harness testing system for automobiles, ships, bullet trains and home appliances industry.
Function and brief characteristics:
1. Scanning Gun is supported;
2. Intelligent voice broadcasting;
3. Manual editing loop table is supported;
4. Testing Report is supported;
5. Loop Table input is supported;
6. Easy operation and high testing efficiency;
8. Support various printers, Any content to edit and print is available.
Technical Specifications and Data:
Test Point
| Up to 10000 test points can be supported
|
Input
| 2 input points (12-24V)
|
Output
| 2 relay outputs, 4 optical coupler outputs
|
Conduction Thresholds
| Program controlled
|
Test Current
| 0-2.5mA
|
Test Voltage
| 0-5V
|
Diode Testing
| The forward voltage is 5V
|
Support LED
| All test points can control LED
|
Firmware update
| Available
|
>>
