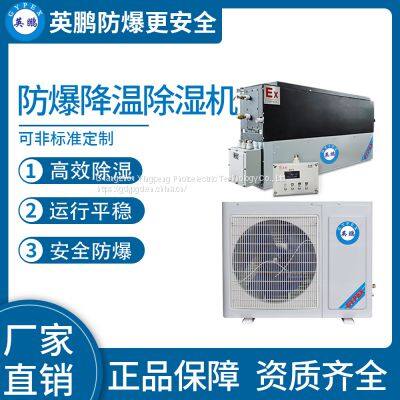

BCF-03CJ Guangzhou Yingpeng Explosion proof Duct Cooling Dehumidifier 2.5KG

Product Details

Product Description

Product Description
Brand: Yingpeng
Model: BCF-03CJ
Dehumidification capacity (kg/h): 2.5
Refrigeration capacity (kw): 3.5
Air volume (m ³/ h) : 550
Input power (kW): 1.3
Compressor: fully enclosed vortex type
Refrigerant: R22/R407C
Control form: external balance thermal expansion valve
Power supply: 220V/50HZ
Temperature control range and accuracy: 18-28 ℃
Humidity control range and accuracy: ≤ 55%
Indoor unit power (kW): 0.8
Condensing drainage pipe diameter: 25
Fan: Low noise centrifugal type with external rotor
Evaporator type: copper tube sleeve aluminum sheet type
Outdoor unit power: 1.22
Fan type: low noise axial flow type
Connecting pipe liquid pipe mm: Φ six point three five
Connecting pipe and air pipe mm: Φ twelve point seven
Connection method: threaded connection
Explosion proof sign: Ex d ib mb IIC T4 Gb
Brand Yingpeng
Model BCF-02TW (F) BCF-03TW (F) BCF-04TW (F) BCF-06TW (F) BCF-10TW (F) BCF-15TW (F) BCF-20TW (F) BCF-24TW (F) BCF-32TW (F) BCF-40TW (F) BCF-50TW (F)
Dehumidification capacity (kg/h) 2 2.5 3.7 5.3 8.8 14.6 18.25 22 29.2 36.5 43.5
Refrigeration capacity (kw) 2.6 3.5 5 7.2 12 20 25 30 40 50 60
Heating capacity (kw)/3.8 5.5 9.3 15.5 23 28///
Air volume (m ³/ h) 450 550 700 1100 2000 4000 4800 5500 7000 9000 11000
Input power (kW) 0.9 1.3 1.7 2.6 4.55 8.5 10.2 12.1 17 20.7 24.5
Compressor fully enclosed vortex type
Refrigerant R22/R407C
Control form external balance thermal expansion valve
Power supply 220V/50HZ 380V/50HZ
Temperature control range and accuracy 18-28 ℃
Humidity control range and accuracy ≤ 55%
Indoor unit power (kW) 0.6 0.8 0.9 0.9 0.25 1.1 1.5 2.2 3.3 3.3
Condensing drainage pipe diameter 25 25.4
Low noise centrifugal fan outer rotor
Evaporator type Copper tube sleeve Aluminum sheet type
Outdoor unit power 0.84 1.22 1.61 2.51 4.3 7.4 8.7 10.6 14.8 2 * 8.7 2 * 10.6
Fan type Low noise axial flow type
Connecting pipe liquid pipe mm Φ six point three five Φ six point three five Φ six point three five Φ six

---
