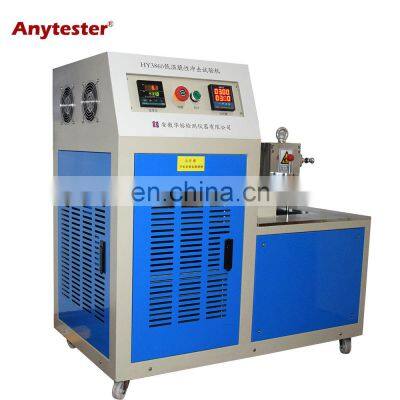

HY3860 Brittleness Temperature Tester (Multi-specimen) is used to determine the temperature at which rubber, plastics and elastomers exhibit brittle failure under specified impact conditions. Brittleness temperature is that temperature, estimated statistically, at which 50% of the specimens wound probably fail.
Standard
ISO 812, 974
| ASTM D746, 2137
| GB/T 5470, 15256
|
Note: This HY3860 Brittle Temperature Tester can perform but not limited to these standards, if you need any more standards, please contact with us.
Features
1. The core components using fully enclosed compressor and control protection system for low-temperature test to provide a reliable guarantee;
2. Equipped with type A and type B impact device, to meet different customer needs;
3. Test temperature digital settings, digital display, with automatically alarm function for temperature reach;
4. Convenient operating system, eye-catching display.
5.Can test 10 A type or 5 B type sample at one time.
Specification
Model
| HY3860
|
Temperature range
| -70℃~0℃
|
Temperature fluctuation
| <±0.5℃
|
Temperature resolution
| 0.1℃
|
Temperature accuracy
| ±0.5℃
|
Test speed
| 2m/s ±0.2m/s
|
Striking edge radius
| R1.6±0.1mm
|
Volume of cooling tank
| 4L
|
Power supply
| AC220V, 50Hz, 1000w
|
Dimensions
| 720×700×1380mm
|
Weight
| 60kg
|
>>
