This model is equipped with energy-saving and efficient turbocharged exhaust engine, and the China National III emission standard, maximize the power of the engine and reduce power loss.
The multi-way valve imported from South Korea has advanced and reliable hydraulic system. The whole car body uses high-quality steel, which is firm, reliable and more durable.

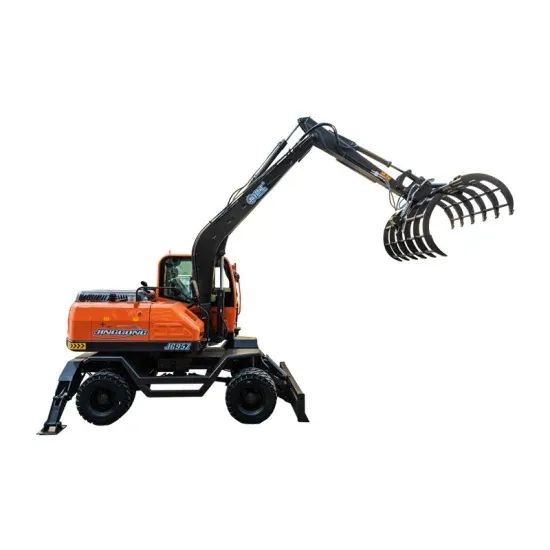

| SPECIFICATIONS OF JG95Z Wheel Excavators Cotton Grapple |
| RANGE OF OPERATION | Boom length | 3680mm |
| Arm length | 2000mm |
| Max radius of capture | 7000mm |
| Max. Opening Width of Grab | 1980mm |
| Min. Opening Width of Grab | 700mm |
| Max. RADIUS Grabing Weight | 650kg |
| Back-end radius of gyration | 1980mm |
| DIMENSION | (Length*width*height)Transport Dimensions | 6500*2330*2930mm |
| Axle base | 2400mm |
| Wheel base(Front/rear) | 1850mm/1750mm |
| Ground clearance of counterweight | 1180mm |
| Min ground clearance | 200mm |
| TECHNICAL PARAMETERS | Angle of rotation | 360° |
| Machine weight | 7800kg |
| Engine model | YUCHAI |
| Rated Power | 62.5kw |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 21Mpa |
| Hydraulic system flow | 150L/min |
| Variable piston pump | 72ml/r |
| Grapple swing speed | 12r/min |
| Walking speed | 25km/h |
| Grade Climbing ability | 58%/30° |
| Tyre model | 8.25-16 |
| Revolution Overdrive Pressure | 20Mpa |
| Full circle swinging time | 5.5s |
| Fqt Fuel Quantity | ≥6L/h |
| Hydraulic Tank Capacity | 110L |
| Capacity Of The Fuel Tank | 110L |
