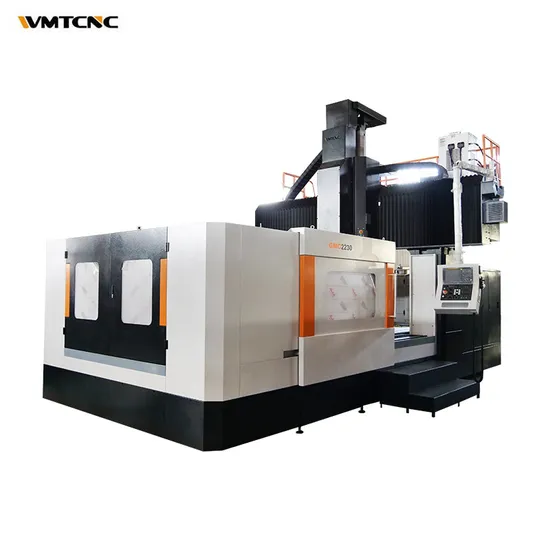

2024 new gantry cnc machining center GMC2230 5-axis simultaneous gantry machining center

Product Description

Product Description
2024 gantry cnc machining center GMC2230 5-axis simultaneous gantry machining center features:
1. In line with design concept of driven at the center of gravity, the machine equipped with double balance counter weight. Meanwhile the center of ram falls on the center of axis, with equalized ram guideway allocation. The design eliminates bending of ram guideway when ram moves up and down. Consequently Z axis can perform with high stability and accuracy.
2. Equipped with oil chiller, cycle cooling source for spindle unit and motor cabine.
3. Equipped with heat exchanger, the electric cabinet can abstrcat heat efficiently during work.
4. Lubrication station is controlled by CNC system which can test and alarm automatically.

Specification	GMC2230
Worktable
Worktable size (L×W)	3000×2000mm
T-slots size (N×W×D)	11-22×160mm
Travel
X/Y/Z axis travel	3200/2250/1000mm
Capacity
Distance from spindle nose to worktable surface	220-1220mm
Distance between two columns	2400mm
Spindle
Spindle taper	BT50
Spindle power	15/18.5kw
Max. spindle speed	6000rpm
Spindle torque	572N·m
Feed
Rapid feed speed (X/Y/Z)	10/10/10m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw	8020/6320/5016
X/Y/Z guideway type	X/Y:roller linear guideways, Z:box guideway
Tool magazine
Tool magazine capacity	24T
Max. length of tool	350mm
Tool change time (T-T)	3s
Positioning accuracy (GB standard)
Positioning accuracy(X/Y/Z)	0.03mm
Re-positioning accuracy(X/Y/Z)	0.018mm
Machine dimension
L×W×H	8800×6400×5500mm
Machine weight
Max. loading of worktable	12t
N.W	33.5t

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
