Product Details
Product Description
Product Description

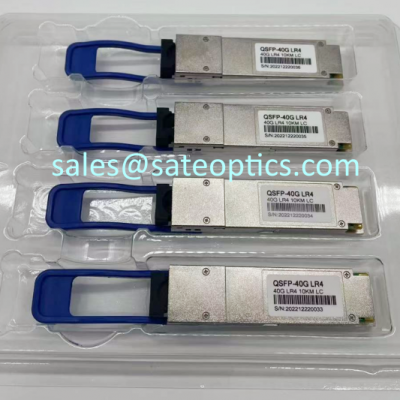

40G-QSFP-LR4
40GBASE-LR4 10km QSFP+ Optical Transceiver with DDM
PRODUCT FEATURES
l QSFP+ MSA compliant
l 4x10Gb/s electrical interface
l Supports 41.2Gb/s aggregate bit rate
l Up to 10km transmission on single mode fiber
l LC duplex connector
l Hot-pluggable QSFP+ footprint
l 4-lane DFB and 4-lane PIN
l Commercial case temperature: 0 ℃o 70℃
l Single 3.3V power supply
l Maximum power consumption 3.5 Watts
l RoHS compliant
APPLICATIONS
l 40GBASE-LR4 Ethernet
l Data Center Interconnect
COMPLIANCE
l QSFP+ MSA
l SFF-8436
l IEEE802.3ba
l ROHS
Ordering information
Part Number
| Data Rate (Gb/s)
| Media
| Wavelength(nm)
| Operating distance(km)
| Temperature(℃)
|
40G-QSFP-LR4
| 41.2
| SMF
| CWDM
| 10
| 0~70
|
Product Details
| Sate Optics P/N | QSFP-40G-LR4 | Vendor Name | Sate Optics |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1295.56nm, 1300.05nm,
1304.58nm, 1309.14nm | Max Distance | 10km |
| Connector | LC Duplex | Transmitter Type | DFB |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | -7.0~+2.3dBm | Receiver Sensitivity | | Protocols | 40G Ethernet IEEE802.3ba and 40GBASE-LR4, MSA, QDR/DDR Infiniband
| Operation Temperature | 0 to 70°C (32 to 158°F) |
Why Choose us
1.Free Sample of Some Products
2.You can know the factory direct price
3.Delivery within 2~5 days for most models
4.Compatible with Most all the brand equipment
5.The best quality and custom service you ever found
6.After-sales 3-year warranty and lifetime technical support
To inquire about details and prices, please CONTACT US!
Wechat/Skype/Whatsapp: 008619520510030
Product Paramenters
Optical Module Transceiver: SFP 、SFP+ 、XFP、CWDM、DWDM、SFP28、QSFP+、QSFP28、QSFP-DD、 DAC、 AOC 、RJ45 etc.
Rate: 155M 、1.25G 、2.5G 、4.125G 、6G 、8G 、10G 、16G 、25G 、32G 、40G 、56G 、100G、200G、400G、800G etc.
★★Send us an Enquiry to get a full catalog with prices★★
Part No.
| Data Rate
| Distance
| Wavelength
| Sensitivity
| Connector
| DDM
| Work Temp.
|
SFP-10G-BX20
| 10G
| 20km
| 1330nm/1270nm
| -15dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-BX40
| 10G
| 40km
| 1330nm/1270nm
| -15dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-BX60
| 10G
| 60km
| 1330nm/1270nm
| -20dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-BX80
| 10G
| 80km
| 1490nm/1550nm
| -23dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-SR
| 10G
| 300m
| 850nm
| -12dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-LR
| 10G
| 10km
| 1310nm
| -15dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-ER
| 10G
| 40km
| 1550nm
| -16dBm
| LC
| Yes
| 0~70℃
|
SFP-10G-ZR
| 10G
| 80km
| 1550nm
| -23dBm
| LC
| Yes
| 0~70℃
|
QSFP-40G-SR4
| 40G
| 100m
| 850nm
| -12dBm
| MPO
| Yes
| 0~70℃
|
QSFP-40G-LX4
| 40G
| 2km
| 1310nm
| -12dBm
| LC
| Yes
| 0~70℃
|
QSFP-40G-LR4
| 40G
| 10km
| 1310nm
| -12dBm
| LC
| Yes
| 0~70℃
|
QSFP-40G-ER4
| 40G
| 40km
| 1310nm
| -22dBm
| LC
| Yes
| 0~70℃
|
QSFP28-100G-SR4
| 100G
| 100m
| 850nm
| -11dBm
| MPO
| Yes
| 0~70℃
|
QSFP28-100G-LR4
| 100G
| 10km
| 1310nm
| -12dBm
| LC
| Yes
| 0~70℃
|
QSFP28-100G-ER4
| 100G
| 40km
| 1310nm
| -21dBm
| LC
| Yes
| 0~70℃
|
QSFP28-100G-ZR4
| 100G
| 80km
| 1310nm
| -28dBm
| LC
| Yes
| 0~70℃
|
QSFP28-100G-CWDM4
| 100G
| 2km
| 1310nm
| -12dBm
| LC
| Yes
| 0~70℃
|
Sate Optics offers a broad range of networking and communication solutions in the following categories: Optical Transceivers, 1G SFP, 10G SFP+, 25G SFP28, 40G QSFP+, 100G QSFP28, 400G QSFP-DD, 800G QSFP-DD，Direct Attach Cables (DAC), Active Optical Cables (AOC), Ethernet Media Converter, Fiber Optical Patch Cords, CWDM, DWDM Mux/Demux and 100G Repeater products.
Our OEM product is 100% compatible with Cisco, HP, Extreme, Juniper, Arista, 3Com, Alcatel，Nokia ，Huawei and many other major networking brands on the market. We have strict quality control and inspection procedures.
We can also do OEM service and use your own brand name. If you are looking for a second source for your products, we are happy to provide you with our competitive price.
Our Products Portfolio includes:
● 800G QSFP-DD DR8
● 400G QSFP-DD SR8,DR4,DR4+,FR4,LR4
● 100G QSFP28 SR4, eSR4, LR4, PSM4, ER4 Lite, ER4,ZR4
● 40G QSFP+ SR4, eSR4, LR4, IR4, ER4 Lite, ER4,ZR4
● 25G SFP28, 10G/25G dual rate SR, BIDI SFP28, CWDM SFP28，DWDM SFP28
● 8G/10G dual fiber SFP+, BIDI SFP+, CWDM SFP+, DWDM SFP+
● 8G/10G dual fiber XFP, BIDI XFP, CWDM XFP, DWDM XFP
● 10G X2 and XENPAK
● Copper SFP: 10/100M, 1000M, 10/100/1000M and 10G Copper SFP+
● 155M, 1G and 2.5G SFP, BIDI SFP, CWDM SFP, DWDM SFP
● AOC Active optical cable series
● DAC Direct Attach cable series
OEM order welcome~
