Basic Info.
Applicable Model
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Harvester, Corn Machine
Shell Material
ABS Plastic
Display Type
Reverse Image
Function
Night Vision, Waterproof, Shockproof
HD Screen Display Resolution
1024*600
Back-Light Brightness
600CD/M2
Free Operating Voltage
DC12-24V
Image Type
1/2.9 Color CMOS
Effective Pixel
1980(H)×1280(V)
Free Viewing Angle
100 Degree
Waterproof
100% Waterproof IP69K Rating
Production Capacity
50000PCS/Month
Product Description
Auto Shutter Reverse Camera Kit
Product description

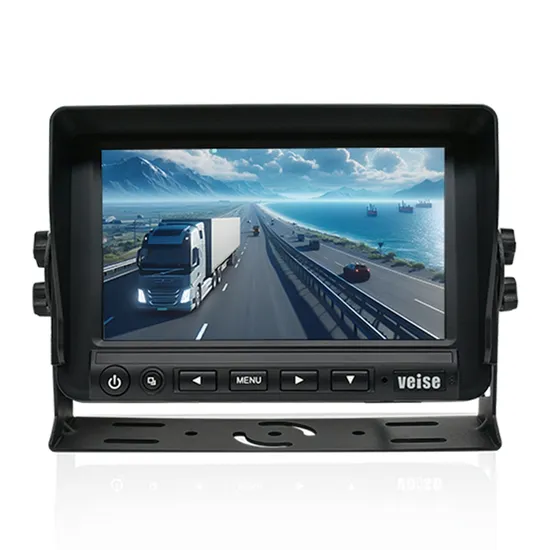

Car LCD Monitor (MHD-771T)
7-inch high-definition screen monitor
Support 2 video inputs
Automotive industrial grade digital video processor
1024RGBX600 resolution
600cd/m high brightness
Anti-dump pulse voltage
Energy-saving, low-power, independent power supply
DC8~32V working voltage
Automotive industrial grade -40°~85° digital video processor
Load dump pulse voltage DC14V+87V (400ms) designed to protect the vehicle from transient pulse damage
Independent power supply adopts energy saving, low power consumption and low temperature circuit stable design
DC8~32V wide range working voltage
Built-in external power supply reverse polarity protection, LED thermal response, constant current and constant voltage protection, service life circuit design
Automatic Flip Cover Low Temperature Heating Car Waterproof Camera(CHD-142M)
Patented design of special transmission structure
Nitrogen filling to prevent fogging
Cold-resistant waterproof tail line
DC11-32V wide working voltage
Heat-dissipating aluminum alloy shell
Low temperature automatic heating
Magnetic sensor switch image normal/mirrored
Video Signal Cable(XC-HD0004-B-15M)
Pure copper double-shielded low-impedance high-flexible cable
Double injection of inner and outer molds and O-rings ensure the waterproof performance of the wire
The 4-core aviation head adopts phosphor bronze PIN needle, which has good tensile and toughness
Pure copper core wire, low impedance, good ductility, not easy to break after repeated bending
Parameter
| System model | HDS-771T142M1 |
| Car LCD Monitor (MHD-771T) |
| Color LCD screen | 7-inch Innolux LCD screen |
| Resolution | 1024(H) X 600(V)dot |
| Video input | Support up to 2 channels of CVBS video signal input |
| Picture mode | Single channel switch |
| Color system | PAL/NTSC (AUTO) |
| Brightness(cd/m2) | 600 |
| Load dump | DC24+174V(Td350mS) 5pulses |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Working temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Working voltage | DC8-32V |
| Dimensions | (L x W x T) (216 x 150 x 80mm) |
| Automatic Flip Cover Low Temperature Heating Car Waterproof Camera(CHD-142M) |
| Image sensor | 1/2.8 Color Sony 307 |
| Effective pixels | 1920(H)X1080(V) |
| Horizontal resolution | 1080P |
| Viewing angle | 130° |
| Infrared distance | 10 meters (built-in 12 850nm infrared lights) |
| Waterproof rating | IP69K |
| Working voltage | DC11-32V |
| Working temperature | -40°C to +60°C (the operating temperature inside the machine is lower than 10°, and the heating will be turned on automatically) |
| Storage temperature | -40ºC to +70ºC |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Dimensions | 94(W) x 83(H) x78(D) mm |
| Video signal cable(XC-0004-B-15M) |
| Interface | 4 core aviation male and female connector |
| Length | 15 meters |
>>
