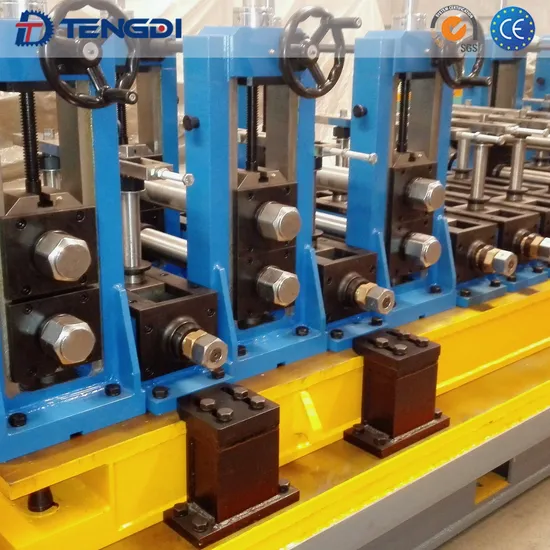

ERW Steel Pipe and Tube Carbon Steel Straight Seam Welded Pipe and Tube High Frequency Pipe Making Machine Pipe Mill Machine Tube Mill

Product Description

Are you looking for high-quality steel pipe making machine that will provide exceptional performance?
Tengdi Machinery is an excellent manufacturer of steel pipe equipment. Our pipe production line has the advantages of high yield, simple operation, strong machine, etc. It can achieve continuous production, high efficiency, low production cost, short payback period, and we It has automatic roll changing technology, which greatly saves the time of changing rolls and further improves the production efficiency. Tengdi also has a professional technical team with many years of experience, who can guarantee that all our products meet the highest standards
You can also contact us if you encounter any problems on your own production line. Hope our professional technical team can help you and establish a beautiful friendship with you.
Quick Details

Manufacture	Tengdi Machinery	Name	ERW pipe making machine
Type	HF Solid state steel pipe welding production line	Line speed	≤60m/min
Round pipe dia	Φ42 - Φ114 mm	Round pipe thickness	1.0 - 5.0 mm
Square & rectangular pipe size	35*35-90*90mm	Square & rectangular pipe thickness	1.0 - 5.0 mm
Pipe material	Carbon steel/Galvanized steel	Place of Origin	Shijiazhuang, China
Voltage	220/380/415/440V	Forming method	Round tube to square tube, quick change table

Product Parameters

Model	Procession(mm)	Round thickness(mm)	Square/Rectanglar (mm)	Pipe thickness (mm)	Welding speed(m/min)
Φ50	Φ19-Φ50	0.6-3.5	15*15-40*40	0.6-3.0	20-120
Φ60	Φ21-Φ60	0.8-3.5	15*15-50*50	0.8-3.0	20-120
Φ76	Φ21-Φ76	0.8-4.0	15*15-60*60	0.8-3.5	20-110
Φ89	Φ32-Φ89	1.0-4.5	25*25-70*70	1.0-4.0	20-100
Φ114	Φ48-Φ114	1.5-5.0	35*35-90*90	1.5-4.5	20-70
Φ165	Φ89-Φ165	≤8	70*70-130*130	≤7	≤60
Φ219	Φ102-Φ219	≤10	80*80-170*170	≤9	≤50
Φ273	Φ114-Φ273	≤14	90*90-200*200	≤12	≤40
Φ325	Φ127-Φ325	≤16	100*100-250*250	≤14	≤35
Φ406	Φ219-Φ406	≤16	170*170-300*300	≤14	≤30
Φ660	Φ325-Φ660	≤22	250*250-500*500	≤20	≤30

Flow chart and product unit
Packaging & Shipping
Processing capacity
Exhibition photos
Certifications
FAQ
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.

---
