Trailed Mixer Wagons with One, Two, or Three Vertical Mixing Augers with Capacities From 3-60m3

Product Description

Trailed Mixer Wagons with one, two, or three vertical mixing augers with capacities from 3-60m3 Product Description
Trailed Mixer Wagons are mainly powered by tractors for traction and mixing, which is convenient for feeding and moving, and has high feeding efficiency.
The mixer is suitable for agricultural and animal husbandry areas, animal farms and livestock farm. It can mix various fibrous feeds such as forage grass, crop straw, silage, etc., and then feed them.

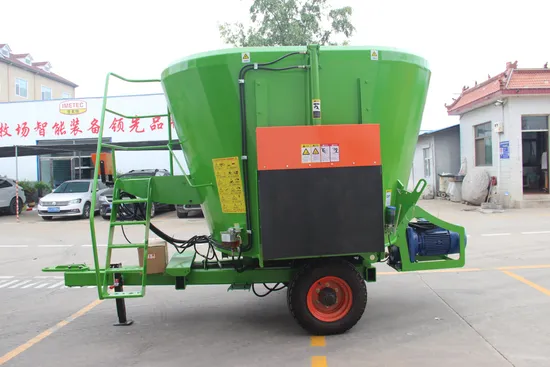

The 9JQL series fully mixed ration mixer is a vertical traction equipment. The feed mixing method adopts the form of spiral augers. Knifes are installed on the augers to chop various hays, with low noise and less pollution. A discharge device is provided on the side of the mixing tank. The discharge door is closed when the mixer is mixing. After the feed is mixed, the discharge door is opened for unloading. There is a feeding device (customizable) on the back side of the mixing tub, which is controlled by a hydraulic system.
Product Parameters

Name	Specification	Model	Dimensions(MM)	Weight(KGS)
9JQL Vertical traction mixer	4m³	9JQL-4	4100*2000*2300	≥2100
	6m³	9JQL-6	4200*2000*2500	≥2800
	8m³	9JQL-8	4400*2300*2700	≥3200
	10m³	9JQL-10	4400*2600*2700	≥3900
	12m³	9JQL-12	4500*2600*2900	≥4000
	14m³	9JQL-14	4770*2600*3100	≥5230
	16m³	9JQL-16	6000*2400*2800	≥5430
	18m³	9JQL-18	6560*2360*3010	≥6000
	20m³	9JQL-20	6800*2550*2800	≥7150
	22m³	9JQL-22	6950*2500*3000	≥7300
	24m³	9JQL-24	7000*2500*3100	≥7600
	26m³	9JQL-26	7200*2500*3100	≥7800
	30m³	9JQL-30	7200*3350*3100	≥8000

One anger(4-12m³) Two angers(14-30m³) Three angers(30-45m³) Four angers(45-60m³)
TMR Feed Mixer features numerous augers for even material cutting. Continuous kneading during mixing ensures a fluffy TMR feed. The cutting augers are crafted from a special manganese alloy and undergo heat treatment, while the oval flower knife, with double-sided serrations, is interchangeable to enhance durability.
The hydraulically controlled discharge door is user-friendly and requires minimal effort to operate.

Our Advantages
1) Independent hydraulic system, easy to hang, strong independence, long service life.
2) The auger is made of special heat-treated manganese steel, sharp and strong, with high wear resistance or carbide coating for long-term use.
3) The equipment mixes evenly and the double-sided material spreading design is free and convenient to switch.
4) The adjustable knives has two fixed positions. After the blade is worn, it can be changed and continued to be used, extending the service life of the blade.
5) The spiral cutting and stirring of the auger machine forms a three-dimensional multi-cycle stirring system, which ensures the full cutting and uniform mixing of the material.
6) The equipment uses high-strength special customized axles with stable axle performance.
6-60 cubic meters of various specifications can be customized
Company Profile
Shandong IMETEC Intelligent Equipment Group Co.,Ltd is a national high-tech enterprise specializing in the research, development and export of intelligent livestock equipment, we have been focusing on intelligent ranch equipment for 25 years.
We can supply livstock equipment such as TMR feed mixer, robot feed pusher, manure collector, leftover collecting machine, manure spreader, feed spreader sillage loader, feeder, feed pusher, manure collector, cow headlock and free stall, cow water trough, calf feeder, bed looser, etc 8 series and 200 kinds products. Among them 57 products in four categories have been included in the national agricultural machinery subsidy promotion catalog.
It is sold well in more than 20 countries and regions at home and abroad, and is the top choice supplier of many listed dairy companies such as Yili and Mengniu.

---
