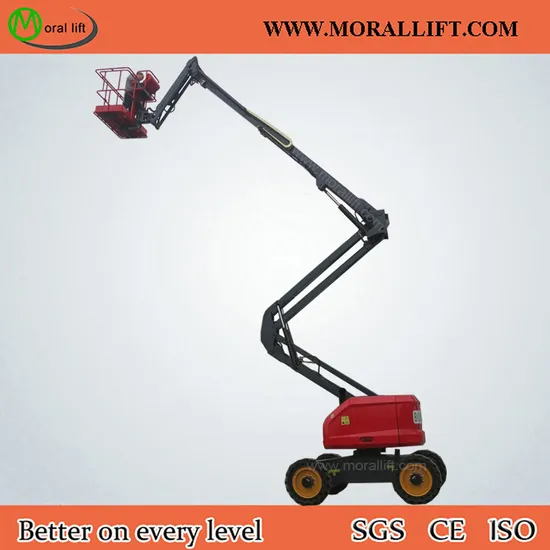

Self-propelled articulating boom lift working platform

Product Description

Product Description
Articulating boom platform is a kind of high-altitude working mechanical equipment, which is designed and manufactured to allow operators to carry equipment and tools into the high-altitude working area temporarily. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety. Articulated boom platform aiming to satisfy customers' requirements.
Reference type

Model	GTZ-8	GTZ-10	GTZ-12	GTZ-14	GTZ-16	GTZ-18	GTZ-20	GTZ-22
Load capacity(kg)	200	200	200	200	230	230	230	230
Lifting height(m)	8	10	12	14	16	18	20	22
Working height(m)	10	12	14	16	18	20	22	24
Platform size(m)	1.53*0.78	1.53*0.78	1.53*0.78	1.53*0.78	1.88*0.78	1.88*0.78	1.88*0.78	1.88*0.78
Overall dimension(m)	5.52*1.67*2.09	5.76*1.67*2.09	6.4*1.78*2.19	7.02*1.78*2.19	7.38*2.09*2.2	8.4*2.28*2.6	8.86*2.28*2.6	9.8*2.5*2.45
Max working radius(m)	5.3	5.8	6.9	8	8.9	10.6	11.7	12.6
Crossing height(m)	5.1	5.7	6.6	7.6	8.25	8.55	9.45	10.1
Drive	Battery/Diesel	Battery/Diesel	Battery/Diesel	Battery/Diesel	Battery/Diesel	Battery/Diesel	Battery/Diesel	Battery/Diesel
Ground clearance(mm)	620	630	300	200	90	-100	-200	-200
Wheel base(mm)	1907	1907	2017	2017	2100	2540	2540	2773
Wheel track(mm)	1440	1440	1550	1550	1800	1830	1830	2100
Number of large arms	3	3	3	3	3	3	3	3
Large arm swing	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Walking speed(km/h) (contraction)	4	4	4	4	4	4	4	4
Walking speed(km/h) (expansion)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Gradeability	25%	25%	25%	25%	25%	25%	25%	25%
Min turning radius(m) (outerwheel /inner wheel)	4.4/2.25	4.4/2.25	4.6/2.35	4.6/2.35	4.55/1.85	5.2/2.2	5.2/2.2	5.5/2.7
Control voltage	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC
Platform rotation Angle	355° Non-continuous	355° Non-continuous	355° Non-continuous	355° Non-continuous	355° Non-continuous	355° Non-continuous	355° Non-continuous	355° Non-continuous
Color	Yellow/Blue	Yellow/Blue	Yellow/Blue	Yellow/Blue	Yellow/Blue	Yellow/Blue	Yellow/Blue	Yellow/Blue
Weight(kg)	4900	5100	6100	6900	7600	9200	11000	11800

Detailed Photos
Other similar type:
Matters need attention:
1) Do not use the machine for other purposes.
2) Do not use the machine as a crane or lift. The machine is used only for its intended purpose.
3) Do not suspend the load on the working basket when it is rising or falling.
4) Never attach a telescopic arm or work basket to a fixed or moving building structure.
5) Never use or run the machine alone. Use must be monitored by someone else, and there must be an escort on the ground in case of emergency.
6) Do not use defective or poorly maintained machines.
7) Do not climb the arm structure of the machine.
8) Do not use parts of different weights or specifications to replace important parts related to the stability of the machine.
9) Do not use tires with different characteristics or replace original tires.
10) To ensure safety and stability, do not alter or destroy any component of the machine.
11) Do not break safety devices.
Company Profile
Welcome to Moral Lift China, we are professional manufacturer of Articulating Boom Platform with good quality and low price. Our promise: Quality First, Customer Above. we have CE certification, we promise the best quality! we can customize for your every inquiry!
Why Choose Us
1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
After Sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
Our Service
1. All the machines will be full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
FAQ
1. MOQ?-1 set
2. Delivery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted
