Automatic Coil Nail Making Machine Nails Collating Machine Screw Shank Nails Collator

Product Description

PRODUCT SHOW

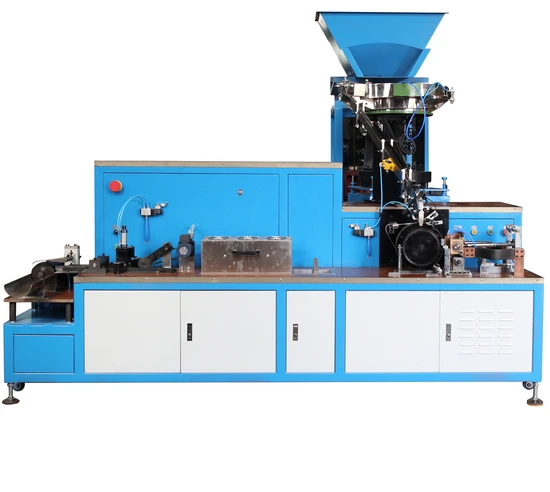

Metal Tech Coil Nail Making Machine can make steel wire into Coil Nails of different specifications. It has the characteristics of simple operation, high speed and low noise.
Metal Tech Coil Nail Making Machine use high-quality material parts, strict quality management all these guarantee superior quality and long performance Coil Nail Making Machine life.

Range of Nail Dia.:	1.6mm-4.1mm
Range of Nail Length:	30mm-100mm
Output:	1500-2500pcs/min.
Rated Power:	3kw
Power of Nail Feeding System:	0.75kw
Power of welding system:	20kw 1000-2000A
Power Supply:	3 phases AC 380V 50-60HZ
Coil nail specification:	angle: 15°/16°
Quantity per roll:	200-400pcs/roll
Welding wires for coil nails:	0.6mm/0.7mm/0.8mm
Lifetime of mould:	1.5-2 years(offer one mould for free)
Packing:	packed in 2 wooden cases
Packing Size:	2900 x 1100 x 1500mm
	2100 x 1100 x 1500mm
Weight:	1600kg

COMPANY PROFILE
TRADE SHOWS
CERTIFICATE

PACKAGING&TRANSPORTATION
FAQ
1.What is your company main products: A: We are manufactuer of wire drawing machine ,gabion machine ,nail making machine, chain link fence making machine, barbed wire making machine etc. 2.what is your service: A:We supply 5 stars service system,pls contact us for the details. 3.Do your machines are standard or custom made: A: We can custom made for each client ,according to the final products' parameters , also we offer custom made for the power ,electric parts etc. 4.What is the delivery time? A. Usually 30- 60 days , it depends the machine and season. 5.What is your time of warranty: A:12 months after commissioning or 18months after shipment. Whichever first is in valid. (it is excluding wear parts. Shipping cost for parts to be replaced during warranty period has to be borne by the customer).And we will offer 1 time 1 year free maintenance for our VIP client.

---
