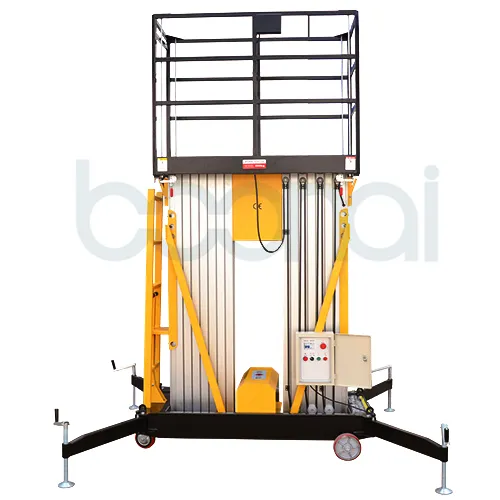

Double Mast Hydraulic Aluminum Vertical Man Lift, Telescopic Man Lift

Product Description

Application:1-2passengers
Max height of platform :6m,8m,9m,10m,12m 14m
Features:two passengers allowable ,small footprint ,less weight ,easily moved,able to access to limited passageway,the most ideal equipment for aerial work to replace ladder or rigger ,with high efficiency and more security
Standard Configuration
Power supply:single phase AC(AC220V)
Move mode:manual(default)
Driving unit :one unit hydraulic pump,small volume and less noise.
others:
1,Hand shank enables easy steering
2,Leveling of platform is guaranteed by adjusting outriggers with screws
3,Electric limit switch shall cut off power when up limit is reached
4,Ground/platform control modes are available,rendering possibility of one operator
5,Stroke protection block is build in hydraulic cylinder for security
6,Emergency lowering system is equipped
7,Raise-and-fall guard rail,rendering minimum height of equipment when in storage status,easy to install
8,Leveling indictor is equipped

Model	GTWY6-200	GTWY8-200	GTWY9-200	GTWY10-200	GTWY12-200A	GTWY12-200B
Safe working load(kg)	300	200	200	200	200	200
Number of passengers	2	2	2	2	2	2
Max height of platform(m)	6	8	9	10	12	12
Max working height(m)	7.7	9.7	10.7	11.7	13.7	13.7
Overall length (m)	1.38	1.38	1.58	1.58	1.62	1.68
Overall width(m)	0.85	0.85	0.95	0.95	0.95	0.95
Overall height (m)	1.85*1.78	1.85*1.78	2.15*2.00	2.15*1.90	2.21*2.04	2.30*2.09
Extended outrigger (lxw)(m)	1.85*0.62	1.18*0.62	1.38*0.62	1.38*0.62	1.38*0.62	1.48*0.62
Size of platform(m)	1.18*0.62	1.18*0.62	1.38*0.62	1.38*0.62	1.38*0.62	1.48*0.62
Lifting motor
AC(VAC/kw)	220/1.1	220/1.1	220/1.1	220/1.1	220/1.1	220/1.1
DC(option)(VDC/kw)	24/0.8	24/0.8	24/0.8	24/0.8	24/0.8	24/0.8
Accumulator(V/AH)	2*12/80	2*12/80	2*12/100	2*12/100	2*12/100	2*12/100
Charger(V/A)	24/10	24/10	24/10	24/10	24/10	24/10
Wheel
Front wheel (in)	6	6	6	6	6	6
Rear wheel (in)	6	6	6	6	6	6
Overall weight(kg)	380(AC)	480(AC)	548(AC)	610(AC)	650(AC)	650(AC)
	425(DC)	525(DC)	593(DC)	665(DC)	700(DC)	700(DC)

Optional Configuration

Power supply: Battery Dc with charger ,suitable for outdoor operation

Move mode: 1,Electric moving device is equipped in case of long distance travel

2,Could be built in carriage of truck

3,Trailer base could be provided in case of outdoor operation

Others:

1,Extendable platform (not for B type)

2,Insulated platform

3,Explosion-proof electrical system

4,Overload alarm

5,Outrigger limit switch

6,Tilt alarm

7,AC power to platform

8,Working alarm

9,Rubber dust stop

10,Explosion-proof valve for oil tube

Ray

Boonai(Suzhou)Lift Equipment Co.Ltd
Cell phone:18762898105
Tel:0512 65382883 Fax:0512 65382264
