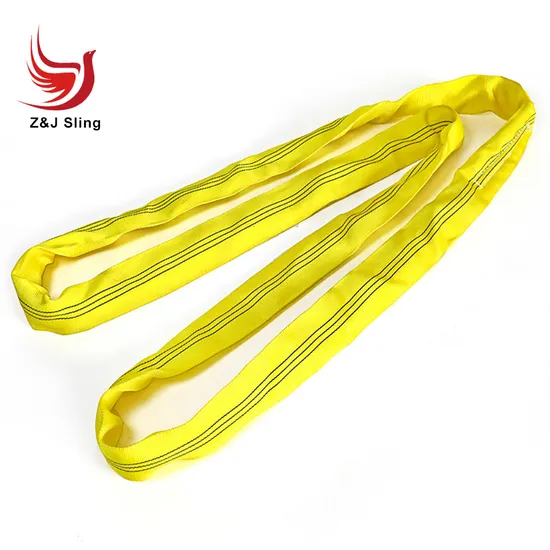

Polyester Endless Webbing Sling Lifting Sling for Lifting Steel Pipe

Product Description

100% Polyester Low Elongation Each stripe is equal to 1 ton capacity Color:Violet,Green,Yellow,Grey,Red,Brown, Blue ect. As standard or required. WLL: From 1Ton to 20Ton Safety Factor: 5:1, 6:1, 7:1,8:1 Length: As required Width: As standarad or required Packing: PE shrink wrap, carton and pallet

Stock No.	Color	WLL	SWL WLL(t) M CC							Double multi-set SWL(t)
			vertical	choke	<7º	a>7º a<45º	a>45º a<60º	a<45º	a>45º a<60º	a<45º	a<45º	a<60º	a>45º a<60º
			M=1.0	M=0.8	M=2.0	M=1.4	M=1.0	M=0.7	M=0.5	M=1.4	M=1.12	M=1.0	M=0.8
RS010	Violet	1.0t	1.0	0.8	2.0	1.4	1.0	0.7	0.5	1.4	1.1	1.0	0.8
RS020	Green	2.0t	2.0	1.6	4.0	2.8	2.0	1.4	1.0	2.8	2.2	2.0	1.6
RS030	Yellow	3.0t	3.0	2.4	6.0	4.2	3.0	2.1	1.5	4.2	3.4	3.0	2.4
RS040	Grey	4.0t	4.0	3.2	8.0	5.6	4.0	2.8	2.0	5.6	4.5	4.0	3.2
RS050	Red	5.0t	5.0	4.0	10.0	7.0	5.0	3.5	2.5	7.0	5.6	5.0	4.0
RS060	Brown	6.0t	6.0	4.8	12.0	8.4	6.0	4.2	3.0	8.4	6.7	6.0	4.8
RS080	Blue	8.0t	8.0	6.4	16.0	11.2	8.0	5.6	4.0	11.2	9.0	8.0	6.4
RS100	Orange	10.0t	10.0	8.0	20.0	14.0	10.0	7.0	5.0	14.0	11.2	10.0	8.0
RS150	Orange	15.0t	15.0	12.0	30.0	21.0	15.0	10.5	7.5	21.0	16.8	15.0	12.0
RS200	Orange	20.0t	20.0	16.0	40.0	28.0	20.0	14.0	10.0	28.0	22.4	20.0	16.0
RS300	Orange	30.0t	30.0	24.0	60.0	42.0	30.0	21.0	15.0	42.0	33.6	30.0	24.0
RS500	Orange	50.0t	50.0	40.0	100.0	70.0	50.0	35.0	25.0	70.0	56.0	50.0	40.0
RS800	Orange	80.0t	80.0	64.0	160.0	112.0	80.0	56.0	40.0	112.0	89.6	80.0	64.0
RST10	Orange	100.0t	100.0	80.0	200.0	140.0	100.0	70.0	50.0	140.0	112.0	100.0	80.0
Comply with ISO4878 EN1492-1:2000 JB/T8521.1

Polyester Webbing sling has below advantage:
1.Used for lifting of expensive,fragile or delicated load.
2.The softeness of sling will not scratch loads.
3.Quickly and easy to handle due to light and flexible properity.
4.Properity of UV,Acid,moist-resistance,Long life of using.
5.Low prolong rate.
6.-40ºC-100ºC working range.
7.Can be fabricated from single or multiple plies,amy including different accessories. Application:
Webbing lifting slings are used in variety of ways throughout several industries, including marine, construction, engineering, power, defense and transport industries, warehousing, house removals and manufacturing plants.
Notes:
1. Always protect webbing from hot surfaces, sharp edges and acids
2. Don't use if webbing is torn or frayed or if hardware is damaged
3. Observe working load limit (WLL) as started to determine quantity of strap assemblies
Necessary for quotation:
1. Quantity you need
2. WLL ( Working limited load)
3. Length
4. Safety factor
5. Type
6. Other special requirement
Company Profile
\
About Us
Changzhou Z&J Sling Co., Ltd is a quickly developing enterprise with 7 years of history. Our factory is China's foremost producer of webbing slings, flexible round slings, synthetic slings, tow straps, and ratchet tie-down (cargo lashing).
https://zjsling.en.made-in-china.com/company-Changzhou-Z-J-Sling-Co-Ltd-.html
We are implementing the newest EN 1492 & 12195/2 norms in production and have formed complete testing methods and a quality-guarantee system. It is the company that gets TUV CE & GS certificate in this field and also gets the ISO9001 certificate.

As we only focus on original manufacturing, we can provide competitive prices and guaranteed quality products to our customers. Z&J is your trusted and reliable business partner.
https://zjsling.en.made-in-china.com/contact-info.html
If you are interested in our products, Please leave messages to us! Thank you so much.

---
