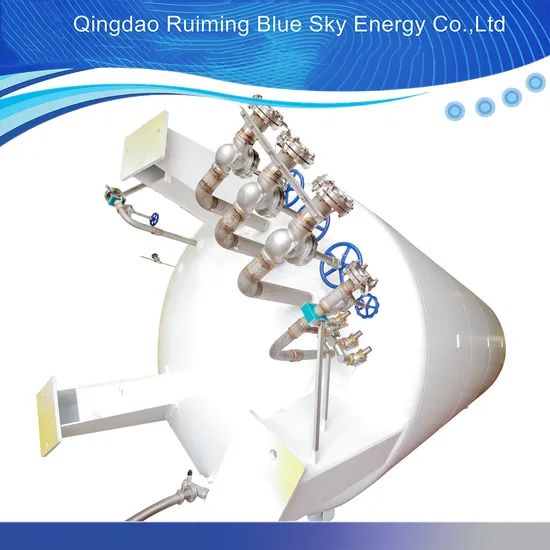

5m3-150m3 Liquid Carbon Dioxide Storage Tank Container

Product Description

Cryogenic Liquid tank
Liquefied gases are used in a wide range of applications, including metal processing, medical technology, electronics, water treatment, energy generation and the food industry. Today, more and more of these industrial gases are being delivered to customers in liquid form at cryogenic temperatures, enabling them to be stored on site for later use. We offer cryogenic tanks for the following liquefied gases:
Liquid nitrogen (LIN)
Liquid argon (LAR)
Liquid oxygen (LOX)
Liquid carbon dioxide (LCO2)
Liquid natural gas (LNG)
Liquid nitrous oxide (LN2O)
Liquid ethylene
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.

Size	Full capacity	Effective capacity	MAWP	Diameter	Height	Weight	Vaporization Rate of LN2	Gas Supply amount
	:m³	:m³	:MPa	:mm	:mm	:kg	:%/d	:m³/H
VT6/0.8-GB	5.41	5.14	0.8	1816	5200	4740	0.65	200
VT6/1.6-GB	5.41	5.14	1.6	1816	5200	5300	0.65	200
VT11/0.8-GB	11.14	10.58	0.8	2216	6400	7250	0.5	450
VT11/1.6-GB	11.14	10.58	1.6	2216	6400	8150	0.5	450
VT16/0.8-GB	15.96	15.16	0.8	2216	8400	9280	0.53	450
VT16/1.6-GB	15.96	15.16	1.6	2216	8400	10530	0.53	450
VT21/0.8-GB	20.77	19.73	0.8	2216	10400	11400	0.5	450
VT21/1.6-GB	20.77	19.73	1.6	2216	10400	13000	0.5	450
VT31/0.8-GB	31.12	29.56	0.8	2920	8820	17470	0.4	1000
VT31/1.6-GB	31.12	29.56	1.6	2920	8820	20460	0.4	1000
VT50/0.8-GB	49.22	46.76	0.8	2924	12820	24310	0.35	1000
VT50/1.6-GB	49.22	46.76	1.6	2924	12820	29230	0.35	1000
VT59/0.8-GB	58.27	55.36	0.8	2924	14820	28430	0.32	1000
VT59/1.6-GB	58.27	55.36	1.6	2924	14820	34720	0.32	1000

Model	Capacity	Effective Capacity	MAWP	Parameter	weight	Evaporation rate	Gas supply	Insulation TYPE
	:m³	:m³	:MPa	Length×Width×Height mm	:kg	(LN2):%/d	:m³/H
HN11/0.8-GB	11.1	10.0	0.8	6100×2216×2676	6840	0.55	350	Perlite
VN11/0.8-GB	11.1	10.0	0.8	6400×2365×2350	7250	0.55	350	Perlite
HN16/0.8-GB	16.0	14.4	0.8	8100×2216×2676	8730	0.53	350	Perlite
VN16/0.8-GB	16.0	14.4	0.8	8400×2365×2350	9280	0.53	350	Perlite
HN21/0.8-GB	20.8	18.7	0.8	10100×2216×2676	10720	0.5	350	Perlite
VN21/0.8-GB	20.8	18.7	0.8	10400×2365×2350	11400	0.5	350	Perlite
HN31/0.8-GB	30.4	27.4	0.8	10700×2624×2980	14970	0.44	500	Perlite
VN31/0.8-GB	30.4	27.4	0.8	10730×2857×2740	15730	0.44	500	Perlite
HN60/0.8-GB	60.0	54.0	0.8	14910×2920×3270	25380	0.31	800	Perlite
VN60/0.8-GB	60.0	54.0	0.8	15220×3195×3000	27430	0.31	800	Perlite
HN30/1.2-GB SI	30.0	27.0	1.2	9470×2620×3000	12610	0.2	/	Insluated
HN60/1.2-GB	60.0	54.0	1.2	13100×3020×3375	25560	0.31	/	Perlite
HN60/1.44-GB SI	60.0	54.0	1.2	13530×2924×3380	25050	0.14	/	Vacuum

Production
Installation Instructions
Packing & Shipping

Related products
FAQ
Q1: What is the delivery time of this Cryogenic Storage Tank?
A1: The delivery time of storage tank is usually within 90 days once the deposit received and product drawing confirmed.
Q2: What is your production standard? Can you manufacture your products under ASME standard?
A2: Our products are designed, manufactured and tested as per reference standards of GB150, safety technology supervision regulations of pressure vessels and some other reference Chinese standards. If you ask for ASME stamp, we are able to manufacture your products under ASME standard.
Q3: What's the warranty for the Storage Tank?
A3: Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
Our Advantageses:
1. Fast delivery : 30-90 days since order confirmed
2. Professional and perfect upstream and downstream supporting services
3. We Supply Systems Solutions - Perfect for many applications: LAR, LIN, LCO2, LN2O, LC2H4 ,LC2H6,ECT.
4. Onsite Filling- No exchanges & tanks are filled onsite
5. Cost Savings- No cylinder handling or need for inventory management
6. Under the epidemic, remote rescue can be realized
Any questions or demand , pls feel free to contact with us.

---
