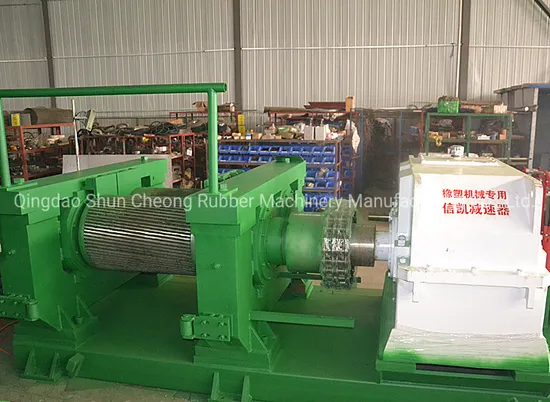

Used Tyre Rubber Pulverizer Mill, Rubber Crushing Mill

Product Description

Waste Tire Recycling Line, Waste Tyres Rubber Powder Production Line, Tire Recycling Line, Used Tyre Rubber Pulverizer Mill, Rubber Crushing MillXKP-450
Advantage:
1.5 years on tyre recycling machine manufacturing and exporting.
2. Delivery within 60 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong.
7. It has passed ISO9001: 2015 certificate.
Product Description
Use:
This machine can directly crush tires smaller than 800mm tires. At the general temperature, can be put directly crushed into 50x50 mm block, so the next rotating can grind into 10-30 meshes or wire and fiber separation equipment.
Feature:
This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; Tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; Rotary screen for the lattice structure of steel mesh, blanking large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!
Mechanical description: The tires of 800mm diameter and rubber ring can directly be broken into 50*50 mm of rubber block.
Notes for using whole tire shredder:
A. Inject gear oil into gearbox oil (hypoid gear oil), main bearings use calcium-based grease lubrication, three months after the operation of the machine, the oil should be replaced and clean the fuel tank. Since then change the oil once time every year.
B After deal with 3, 000 tons of waste rubber (in normal circumstances), the buyer should grind the blade cutting edge once time. The blades is the wear parts, the general service life is 5-6 years, when delivering the machine to the buyer, the shredder will be equipped with edge hardness layer patching material (electrodes).

No.	Name	Model	Qty. (Qty)	Motor Power (KW)
1	Single hook debeader	LSJ-1200	1	11
2	Whole tyre cutter	QDJ-1200	1	5.5
3&4	Whole tyre shredder(with conveyor)	ZPS-900	1	61.5
5	Double Rolls Rubber Crusher	XKP-450	1	55
6	Big conveyor equipment	BCL-8	1	2
7	Small conveyor equipment	BCL-3	1	1.1
8	Big Magnet separator	BMS22	1	2.2
9	Small Magnet separator	SMS-1	1	1.1
10	Big Shaking screen	BSS-8	1	7.5
11	Small Shaking screen	SSS-3	1	3
12	Fiber separator	FS110	1	5.5
13	Fine Rubber Powder Pulverizing Machine	XJFS-420	1	29.25
14.	Vibrating screen		1	0.75

---
