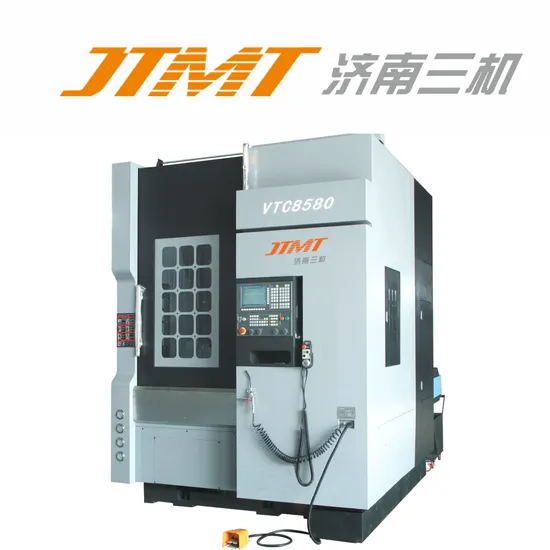

Jtmt Vtc 8580 Vertical Machining Center High Speed High Precision Milling Machine Horizontal CNC Lathe

Product Description

Product Description

We have 50 years of professional experience in the production of numerical control machine tools. The industrial park covers an area of 66,000 square meters and the construction area is 15,000 square meters. For professional services, please consult customer service.
Product Characteristics
1.his machine is a horizontal CNC turn-milling compound machine tool. It has a reasonable structure, a cast iron base, and strong rigidity. It can automatically complete the cutting of internal and external cylindrical surface, conical surface, circular surface, end face, groove cutting, chamfering and other processes, and can also achieve carving, milling, drilling, tapping and other processing. It is suitable for the production of various varieties and batches of products, especially for the parts with complex turn-milling integration and high-precision processing.
2.introduces international advanced models, with unique design and advanced concept, and has complex processing functions such as engraving, milling, drilling and tapping. The processing function is very powerful, and the cost performance is very high. It is especially suitable for processing large quantities of complex parts.
3.This model has reasonable design layout, strong rigidity, large stroke and large cutting amount; With the CNC interpolation function of C-axis (main shaft), X, Y, Z, A and B axes, the multi-axis linkage turn-milling combination can be truly realized.
4.Configuration of this machine: the electric servo turret is designed with Y-axis plus power head. This configuration is applicable to the carrier with large short-stroke workpiece.
Product Parameters

l

Item	Unit	VTC8580
Maximum turning diameter	mm	850
Maximum cutting length	mm	700
Diameter of main shaft head		A2-11
Spindle bearing diameter	mm	160
Spindle speed range	rpm	30-1000
Spindle output torque	N.m	890
Diameter of three-jaw hydraulic chuck	mm	24
Turret form		Horizontal 8
Turret Specifications	mm	125 Center height
Knife Specifications	mm	32/φ50
X axis traval	mm	-50-425
Z axis traval	mm	800
X/Z wire gauge		15
X/Z Screw diameter	mm	12
X axis rapid feed	m/min	0.1-5000
Z axis rapid feed	m/min	55 roller
cutting feed	m/min	φ50
X motor power/torque	kw/N.m	2.8/18
Z motor power/torque	kw/N.m	3.5/22
Y motor power/torque	kw/N.m	30/37-356
length x wide x high	m	2.3x2.4x3.2
Weight	kg	9500

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide
customers better quality, better price,and better service".

---
