400kg-1200kg Vacuum Pump Suction Gripper Lifter for Jumbo Glass Handling, Loading, and Unloading

Product Description

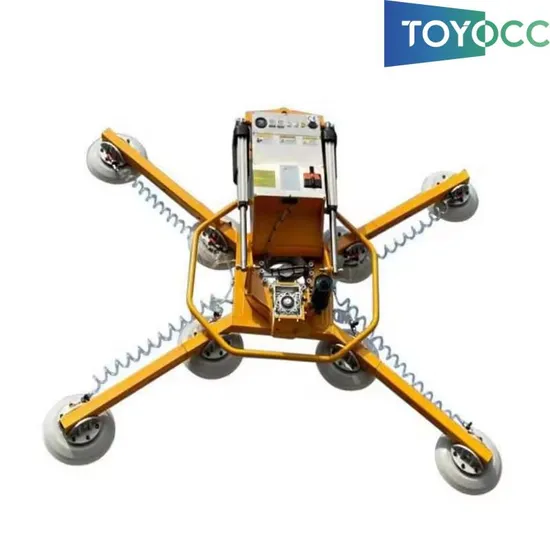

Electrical X-type Vacuum Glass Lifters We are a premier supplier of vacuum glass lifters, offering a variety of models including:
Electrical X-type and H-type vacuum glass lifters Pneumatic vacuum glass lifters Glazing robots for curtain wall installation Handheld glass lifters Today, we would like to focus on our X-type electrical vacuum lifters
Description We specialize in high-quality vacuum glass suckers, utilizing pneumatic components sourced from renowned brands such as SMC (Japan) and Thomas (USA). Our products are widely used in various industries, including glass, steel, wood, and machinery.
With over 10 years of experience, our team is adept at producing different models of glass lifters tailored to customer specifications or designs based on actual requirements. Our devices are popular among Chinese companies, including several well-known firms, and are also exported to regions such as Europe, the USA, the Middle East, Russia, and Southeast Asia.
Our vacuum glass suckers have an 18-month shelf life, competitive pricing, and exceptional after-sales service. Designed for use with cranes or other hoisting equipment, the RSY-600-6 lifters utilize vacuum technology to secure loads for lifting. They feature manual 360° rotation and mechanically assisted manual 90° tilt movements for efficient load manipulation.
Features Light and compact, easier operation DC12V battery power, and no cable connection needed Extension arms are available for different sizes of glass sheet Manual turning-over 90°and rotation 360°with spring lock positioning Digital vacuum pressure display and LCD battery colume display Sealed cover for components protection, suited for outdoor use Low pressure alarm with acoustic and light Safety tanks ensure the longer holding time Charging for full 4 hrs, working life is about 30 to 40 hrs in a row
Specification

Working Capacity	400	600	800	1000	1200	kg
Suction Cup Qty	4	6	8	10	12	/
Suction Cup Diameter	300	300	300	300	300	mm
Suction Cup Working Load	100	100	100	100	100	kg
Rotation	360° Manually					/
Turning over	90° Manually					/
Power	DC12					V
Charge	AC220/110					V
Self Weight	70	90	100	110	120	kg
Lifter Dimension	850*750*300	1800*900*300	1760*1460*300	1900*1410*300	1900*1580*300	mm
Extended Arm	590					mm
Control System	Integrated Control Cabinet Design, equipped with additional wire remote					/

Diagrams
Lifters in Filed
Certificates
Package
More Products Company Profile
Founded by two metal equipment industry leading companies in 2017, Qingdao TOYO Industry Co., Ltd is specialized in developing the glass machine supplying business.
Both our parent companies have more than 20 years of experience in the glass machine manufacturing industry, with excellent production capacity and outstanding quality control. Our factories cover a total area of 128, 608 square meters, with 500 technical staff, as well as 60 research and development engineers.
Our mission is to provide"excellent price with same quality, and same price with high quality".

FAQ
Q: How about the delivery time?
A: 10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container.
Of course, we can also meet the urgent delivery time if the production schedule is not tight. Welcome to ask for the detailed delivery time according to your order quantity!

Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team, and each of our package workers will be in charge of the final inspection according to the QC instruction before packing.

Q: I'd like to know your Payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are
acceptable for sample order.
Q: How can I know how my order is being done?
A: We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
Q: OEM Capability:
A: All OEM orders are welcome.

---
