China High Quality CNC Metal Lathe Machine (BL-CK6136/6140)

Product Description

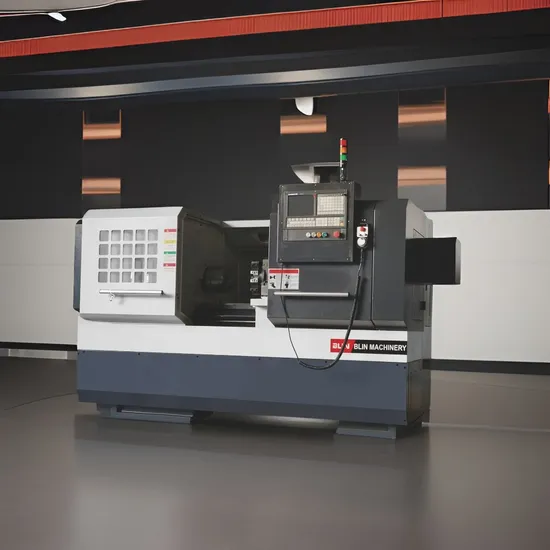

China high quality cnc metal lathe machine(BL-CK6136/6140)
- Guideway width 312mm, suitable for light process - Can choose Independent spindle or 2 class gear spindle - Bed casted by China top quality compound resin sand cast iron - Guideway hardened by ultrasonic frequency, good precision keeping - Aging treatment,has good vibration absorption and rigidity - Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force - Spindle use high precision bearing, Germany KLUBER lipid - High precision ball screw, connected with motor directly Details:

Item	Specification	Unit	BL-CK6136	BL-CK6140
Capacity	Guideway width	mm	312
	Max. swing dia. over bed	mm	Φ360	Φ400
	Max. swing dia. over slide	mm	Φ200	Φ240
	Max. workpiece length	mm	750/1000
Spindle	Spindle bore	mm	Φ52
	Spindle taper	/	MT6#
	Spindle speed	rpm	Independent spindle:100~1600; 2 class gears:25~1600(66~660,65~1600) 2 class gears:100~3000(100~1047,290~3000)
	Spindle head type		C6
	Chuck size	/	8''
	Spindle motor	kw	5.5
X/Z axes	X axes travel	mm	210
	Z axes travel	mm	600/850
	X/Z axes ball screw O.D.	mm	20/40
	X/Z axes rapid rate	m/min	4/6
	X/Z axes positioning accuracy	mm	±0.015
	X/Z axes repositioning accuracy	mm	±0.006
Tool post	Tool post	/	Vertical 4T/Horizontal 6,8T
	Toolshank size	mm	20×20
Tailstock	Tailstock quill travel	mm	100
	Tailstock quill dia.		Φ60
	Tailstock quill taper	/	MT4#
Accuracy	Turning accuracy	/	IT6-7
	Turning roughness	μm	Ra1.6
	Turning roundness	mm	0.005
	Turning flatness	mm	0.025/300
Others	Overall size	mm	2150/2450×1350×1700
	Weight	Kg	1300/1400	1600/1700

Main parts list:

Item	Brand
Bearing	CHINA top-HRB
Ball screw	CHINA top
Spindle	Own-made
Hydraulic parts	TAIWAN
Electricity parts	FRANCE-SCHNEIDER

Standard configuration:
-GSK controller
-Manual chuck
-4 station tool post
-Manual tailstock

Optional configuration:
- SIEMENS 808D ADVANCED/FANUC 0I TF controller
- Hydraulic chuck
- 6/8 station tool turret
- Hydraulic tailstock
