Product Details
Product Description
Product Description
product feature:

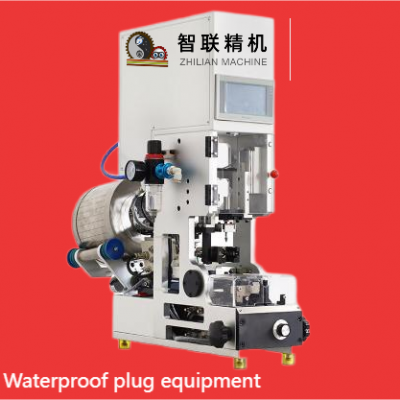

This machine is a semi-automatic waterproof plug threading machine, which is used to automatically insert the waterproof plug into the wire after peeling or not peeling.
The consistency of penetration depth is good, which greatly improves the wearing speed of waterproof bolt and improves production efficiency. Water plug through
Roller feed automatically in place, manually put the line in the working position after stepping on the foot switch can be automatically completed
Waterproof blocking action. When there are a variety of different sizes of waterproof plugs, just replace the corresponding track.
technical specification:
Device model :JL-068G
Waterproof bolt Length range ∅ ∅ 3-1 3mm (based on the actual waterproof bolt, more than the standard can be customized)
Waterproof bolt outside diameter range ∅ ∅ 3-12 mm (based on the actual waterproof bolt, more than the conventional standard can be customized)
Bolt wire diameter 0.35-4mm (waterproof bolt shall prevail, more than conventional standards can be customized)
Threading length (single branch) 28mm (minimum threading length)
Threading length (multi-core wire, parallel wire) 25mm (minimum length of leaving wire, clamping large wire through small wire)
Air source 0.5-0.6MPa
Power source 0 AC220 50HZ
The speed of working times is one per minute, 3500-3600 per hour, and the fastest is 4000 per hour
Motor power 24VD-50W
The weight is about 36kg
Size width width 200mm* length length 600mm* height height 630mm
Fully automated non-standard equipment can be customized according to customer samples.
>>
