| ITEM | VALUE |
| Model | WC67K 250T4000 |
| Pressure | 250ton |
| Max bending length | 4000mm |
| Max bending thickness for 4m sheet | 8mm |
| Column distance | 3200mm |
| Slide stroke | 250mm |
| Max opening height | 520mm |
| Throat depth | 350mm |
| Main motor power | 18.5kw |
| Machine size | 4500x2050x2850mm(LxWxH) |
| Weight | 16000kg |
| Axes | Y, X |

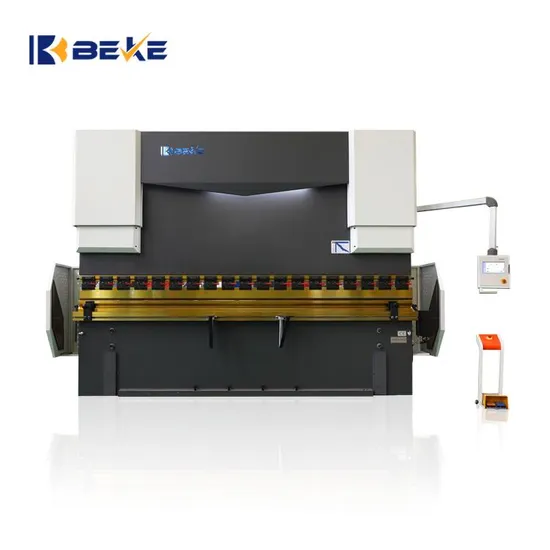

| BEKE WC67K Series NC press brake adopts the torsion axis to link the left and right pendulum rods to form a torsion axis forcing synchronization mechanism to move up and down the oil cylinders on both sides. This type of bending machine is the best choice if the bending accuracy of the sheet is not high, and it is equipped with a simple numerical control system, which is economical and practical. | |
| All steel welded structure with enough strength and rigidity; Hydraulic transmission, stable and reliable; Mechanical stop, synchronous torsion shaft, high precision; The distance of back stop and the stroke of upper slider are adjusted by electric control and displayed by digital display; The upper die is equipped with deflection compensation mechanism to ensure high bending accuracy; TP10S CNC system; Y-axis and X-axis drive automatic control. | |
