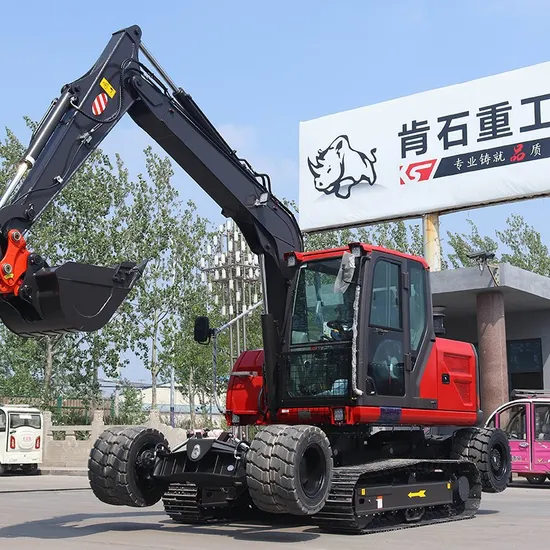

Rhinoceros X9 9 Ton China Compact Digger 9000kg Mini Wheel Excavator

Product Description

Wheel Excavator bagger with grapper 1.Detail information for X9
a brand new excavator invented by our company,
it is with both tires and track, easy to switch.
walking spead is 25km/h, transportation cost will be highly reduced.
Annual sales about 200 sets,
with very stable performance,good quality
Best factory price!
For End consumers
Our products are cost-effective, exquisite in workmanship, and have a long service life. The product models range from 0.8 tons to 12 tons. (Crawler or wheeled or wheel-crawler excavator) can meet your needs and support customization
For distributor
We will provide quality assurance services for your products during the product warranty period. At the same time, we will advertise for you in your country for free, and support custom colors and product trademarks.

Specification:

Total length (Boom3.6m+Bucket arm 2m)	6570 mm
Total height (Boom3.6m+Bucket arm 2m)	2982 mm
Counter weight turning radius	1836 mm
Engine hood height	2104 mm
Counter weight ground clearance	1120 mm
Upper structure width	2000 mm
Cabin height (wheels up)	2982 mm
Tire width	2120 mm
Ground clearance	270 mm
Wheels up wheel gauge	3400 mm
Distance of swing center to rear wheel (wheels up)	1682 mm
Wheels down wheel gauge	3560 mm
Distance of swing center to rear wheel (wheels down)	1767 mm
Rear wheel ground clearance(wheel up)	300 mm
Tracks ground clearance(wheel down)	330 mm
Total height (wheels down)	3190 mm
Track wheel track	2050 mm
Track width	400 mm
Track outer width	2160 mm

Total weight	8770kg
Bucket capacity	0.3m3
Model	YANMAR 4TNV94L-BNBKC
Displacement	3.054L
Engine power/rpm	33.7 kw/2100 rpm
Max. torque	193.2-210.6 N.m/126±100rpm
Wheel travelling speed	25 km/h
Track travelling speed	2.3km/h
Swing speed	9rpm
Max. grade ability	30°
Hydraulic system	Rexroth from Germany
Pump	variable capacity pump
Pressure	25 Mpa
Displacement	132 L/min
Capacity of hydraulic tank	175 L
Capacity of fuel tank	150 L
Engine oil capacity	12 L

Max. digging radius	6880mm
Max. digging radius (on ground)	6735mm
Max. digging depth	3772mm
Max. digging depth	7130mm
Max. dumping height	5220mm
Min. turning radius	2617mm
Max. vertical digging depth	3425mm
Bucket digging force (KN)	56KN
Bucket arm digging force (KN)	36KN

Company Profile

Our team:
Related product:

FAQ
1: Are you factory or trading company?
A: Here we are factory since the year 1995, brand is XINIU/Rhinoceros, focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .

Contact US
ADD: Liaocheng, Shandong Province, China.
Attn: Jan YU
