Hydraulic Trailer Scissor Lift with CE

Product Description

Product Description

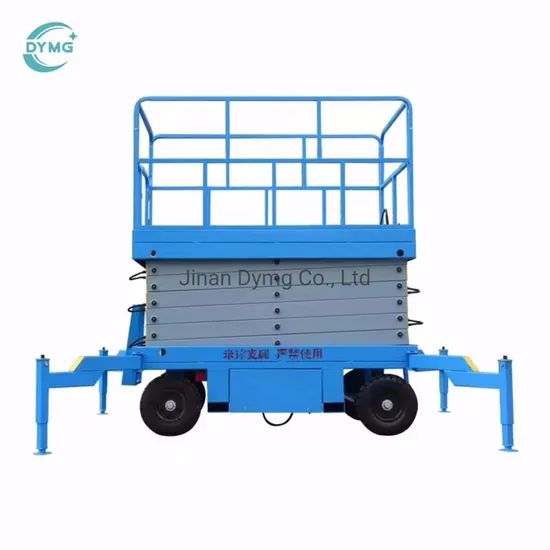

Mobile scissor lifting platform is a piece of special equipment for aerial work with wide applications. Its scissor-type mechanical structure makes the lifting platform has higher stability. A wide space platform and higher load capacity make the work range more larger and suitable for many people to work at the same time. It makes aerial working more efficient and safer. Mainly used for the station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.

Product Parameters

Model No.	Table Size (mm)	Loading Capacity (kg)	Platform Height (m)	Working Height (m)	Overall size (mm)	N.W.(kg)
DYMG04	2100*830	500	4	6	2250*950*1100	800
DYMG06	2100*830	500	6	8	2250*950*1200	880
DYMG07	2100*830	500	7	9	2250*950*1280	970
DYMG08	2100*930	500	8	10	2250*1060*1380	1050
DYMG09	2100*930	500	9	11	2250*1060*1500	1165
DYMG10	2100*1230	500	10	12	2250*1350*1530	1360
DYMG11	2100*1230	300	11	13	2250*1350*1650	1400
DYMG12	2550*1530	500	12	14	2796*1670*1750	2260
DYMG14	2812*1530	500	14	16	3067*1730*1810	2400
DYMG16	2812*1600	300	16	18	3067*1800*2080	3500
DYMG18	3070*1600	300	18	20	3321*1810*2080	3900

Detailed Photos

Main Features
1. The lifting mechanism is made of high-strength manganese steel rectangular tube;
2. Equipped with a lifting platform overload hydraulic safety protection system;
3. Equipped with anti-fall safety protection device to prevent pipeline burst;
4. It is equipped with a manually controlled lowering valve for emergency descent in case of power failure;
5. Optional telescopic table to expand the range of aerial work;
6. Optional solid tires;
7. Optional manual hydraulic pump as lifting power;
8. Optional AC two-phase power or three-phase power as power;
9. Optional DC battery or diesel motor for power.
Strength Factory
After Sales Service
1.User-friendly English manual for machine using and maintenance.
2.One year warranty for the whole machine without man-made fault.
3.We will send you parts for free if there are any non-human factors problem during warranty time.
4.24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.
FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 24 months.
4.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.

---
