Product Description
Product Description

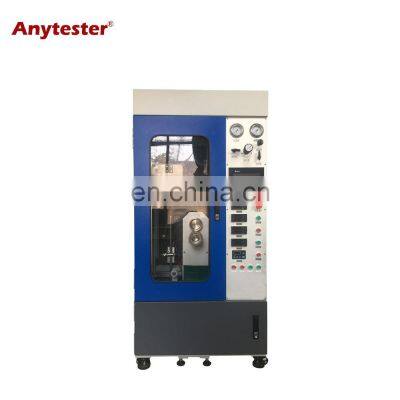

Product DescriptionAT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roll or passes through coagulating bath (optional), heat stretching (optional), relax hot setting (optional) and then be wound onto the winding roll.Detailed ImagesSketch for Dual-plunger Melt Spinning Machine ★ Mixing part, coagulating bath, hot stretching and relaxing heat setting are optional.★ AT226A Single Plunger Melt Spinning Machine has a plunger metering part, but no mixing part while AT226B Dual Plunger Melt Spinning Machine has two plunger metering parts and mixing part. Function & Structure★Material feeding part consists of screw feeder and driving motor. The amount of feeding material is adjustable by adjusting the feeding speed; the stock bin adopts open-able sealing structure with available nitrogen blowing to protect the raw material; ★ Plunger metering and melting part: material is heated by heating hood to melt and then flows into the plunger-type cylinder. The forward of plunger is driven by the servo motor to precisely control the flow; multi-section temperature controlling, real-time display and control the inner pressure and the temperature of material; ★Mixing part to evenly mix materials (only for AT226B);★Heating hood of cast copper with multi heating sections, rapid to heat and high heat efficiency; ★Stainless steel winding roll, disassemble-able structure;ModelAT226AAT226B Number of plunger metering part12Material-feeding partStructureScrew feeder & driving motorAdjust screw speed to control feeding amountMaterial316L stainless steelDesigned capacity of stock bin200mlPower of driving motor200WPlunger metering partStructureMelting & meteringCylinder material of plunger pump306 stainless steelInner diameter 40mmLength100mmDesigned pressure35MpaSurface treatmentNitrogen treatmentHeat power2000WTemperature controlling rangeRT+10~450℃Controlling accuracy±0.5℃Heat modeHeat loop of cast copperMixing partMotor power---800W Reduction ratio of reducer---1:20Speed adjusting methodFrequency control of motor speedMetering pumpOperating temperature≤450℃Heat methodElectric heatingCapacity of pump22~30000kmol/hrSpinning partMaterial of spinneret plateSUS630Number of spinneret orifice1Number of mesh on filtering plate200Ratio of length to diameter of spinneret plate2.5:1Spinning temperature rangeRoom temperature~320℃Max. heat power of furnace1.5KWWindingMotor power0.4KWMax. rotation speed2800r/minSize of winding roll¢200×200mmPaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
>>
