Product Details
Product Description
Product Description
Features:
1. The slotting depth of the automatic letter bender is precisely controllable, and the slotting depth is controlled by a numerical control axis to realize the precise depth of processing various materials.
2. Intelligent control software can intelligently detect interference to avoid interference and collisions during the bending process.
3. The screw-type manipulator feeds materials quickly while avoiding material damage.
4. The lifting type bender minimizes interference during the bending operation while also significantly increasing bending strength.
5. The automatic letter bender can read variety of vector files in PLT, AI, and DXF format, which exactly matches the files of the engraving machine.
6. The automatic letter bender adopts imported square rails and high-precision lead screws to realize the intelligent adjustment of the slotting depth.
7. The automatic letter bender adopts imported square rails and high-precision lead screws to realize the intelligent adjustment of slotting depth.
8. Special specifications and requirements can be customized.
Technical Data:
Product Name

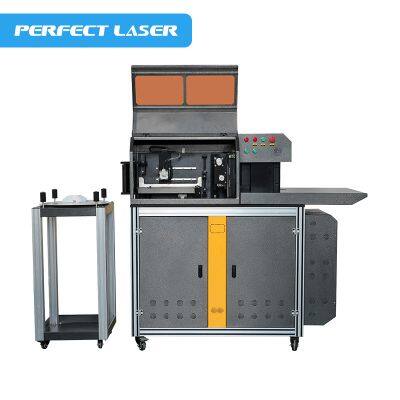

| Manipulator Flat Metal Channel Letters Bending Machine
|
Model
| PEL-700A
|
Working Principle
| Automatic feeding, automatic bending, automatic slotting
|
Processing Materials
| Stainless steel, flat aluminum, galvanized sheet
|
Material Height
| ≤200mm
|
Profile Thickness
| 0.3mm - 1.2mm
|
Equipment Power
| ≤2000W
|
File Format
| DXF, AI. PLT
|
Air Pressure
| 0.6 Mpa
|
Voltage
| 220V / 50Hz
|
Package Size
| 1800mm*950mm*1880mm
|
Machine Size
| 1750mm*870mm*1700mm
|
Machine Weight
| 580kg
|
Package Weight
| 670 kg
|
Training
| Perfect Laser offer professional
User's Manual and training VCD
|
Guarantee
| Perfect Laser offer 12 month guarantee
|
>>
