Cryogenic Liquid Hydrogen Lh2 Pump Oxygen Filling Pumps Gas Station Equipment

Product Description

Cryogenic Liquid Hydrogen LH2 Pump Oxygen Filling Pumps Gas Station Equipment
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: workshop
Our factory is a technology enterprise specialized in R&D,manufacture various of air separation plant and cryogenic application equipment. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. It has more than 40 years of experience in research and development, design and manufacture of cryogenic products and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2010 quality management system certification/CE certification and obtained a number of national invention patents. Our main products: LNG/LCNG Gas Refueling Station Hydrogen Refueling Station Cryogenic Liquid Gas Filling Skid Cryogenic Liquid Pump Air Ambient Vaporizer Water Bath Vaporizer Now our company's cryogenic products has been exported to America, Italy, Bolivia, Thailand, Egypt, India, Middle East, Africa and so on.
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: processing center
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps:cryogenic pumps spare parts
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps:cryogenic pump high pressure Introduction to The Process Flow of Hydrogenation Station
Schematic of Hydrogen Refueling Station Supplied By Tube Trailer
Flow Chart for Liquid Hydrogen Station
Hydrogen Refueling Station
Hydrogen Booster Pump With Liquid Driven
Product Introduction
The working principle of the equipment:the hydraulic pump station uses electricity as the power to drive the hydraulic pump to pressurize the hydraulic oil through the motor, the high pressure hydraulic oil is passed into the pump with liquid drive which through the switch solenoid valve switching and pressure valve adjustment, and the the liquid drive pump do reciprocating action to make the hydrogen pressure up.
Technical Parameter:

Inlet Pressure	5-20Mpa
Inlet Temperature	30 degree
Outlet Pressure	45Mpa
Flow	500Kg/12h
Pressure Ratio	1-2
Drive Way	Hydraulic drive
Max Number of Motions	30 times/min

Diaphragm Hydrogen Compressor
Production Introduction
A diaphragm compressor is a positive displacement machine which consists of a hydraulic system and a gas compression system. The hydraulic system adopts a linear reciprocating piston, which is driven by a motor to drive the crankshaft of the compressor fuselage, then pushes the piston to reciprocate, so as to push the hydraulic oil to reciprocate, and so as to push the metal diaphragm to reciprocate and to energize the gas processing system.
Technical Parameter

Compressor Series	3
Inlet Pressure(Mpa/PSI)	3-10/435-1450
Outlet Pressure(Mpa/PSI)	24-103/3500-15000
Flow	600-1200kg/12h
Compressed Form	Diaphragm

Hydrogen Dispenser
Technical Parameter

Rated Working Pressure	35Mpa
Max Working Pressure	43.8Mpa
Designed Pressure	48.2Mpa
Filter Accuracy	5μm
Flow	≤ 3.6kg/min
Outlet Temperature of Heat Exchanger	≤ -20ºC
The Environment Temperature	-22 to 55ºC
Hydrogen Gun	Single Gun(TK16)/Double Gun(TK25)

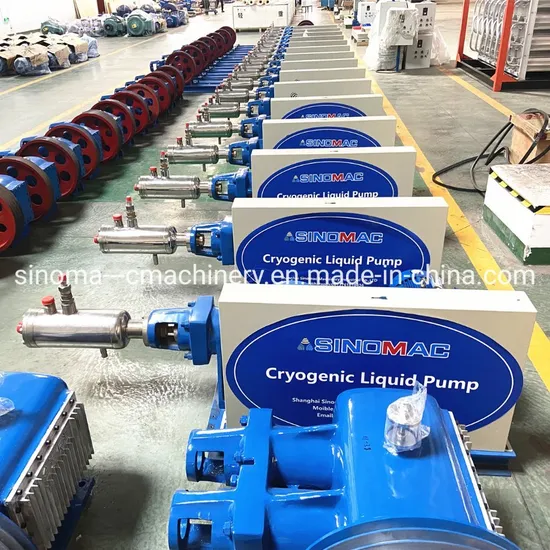

Cryogenic Liquid Hydrogen Pump
Product Introduction
The equipment adopts advanced sealing structure and thermal insulation technology with goods sealing performance and cold insulation performance. Transmission case have low voice performance. The equipment has high effluent efficiency.
Technical Parameter

Model	BPH-600/98
Flow	600L/H
Medium	LH2/LN2
Inlet Pressure	0.02-0.8Mpa
Outlet Pressure	98Mpa
Power	37KW

Liquid Hydrogen Vaporizer
Product Introduction
The ambient vaporizer designed by our company which uses the natural convection air in the atmosphere as the heat source for heating cryogenic liquid in the pipe. It is a new generation of heat exchange equipment with high efficiency, environmental protection and energy saving which gasifies it into a certain temperature gas.

Flow	800Nm3/h
Inlet Medium	H2
Outlet Medium	Liquid Hydrogen or Super Critical Hydrogen
Inlet Temperature	-253ºC
Outlet Temperature	Ambient Temperature -10ºC
Designed Temperature	-253ºC to 40ºC
Designed Pressure	150Mpa
Working Pressure	98Mpa

-40ºC Hydrogen Precooling System
Product Introduction
The device is used for the front end of the hydrogenator which can perfectly match the 70Mpa hydrogenation gun, and effectively control the temperature rise of the hydrogenation fast charging proof that hydrogenation is safer.
Technical Parameter

Working Medium	H2
Working Pressure	98Mpa
Designed Pressure	150Mpa
Inlet Temperature	-40ºC to -85ºC
Outlet Temperature	-40ºC to -33ºC

The Whole Solution of Hydrogen Refueling Station
As the leader company of gas refueling station, we have have years of experience in engineering, construction and maintenance. As we have clear understanding and know how to make hydrogen filling station. We can supply the comprehensive support to customer Such as feasibility, study, site layout,safety management,key equipment selection, approval and application, operation and maintenance. The total solutions include:
Engineering customized or temporary refueling facilities.
HAZOP analysis for the whole station.
Alternative fuels combined fueling station rebuild or update
Communication between on board cylinder and dispenser can be realized, refueling process adjusted in time to make cylinder more safely.
Optimized refrigeration system for fast fueling.
A variety of hydrogen pressurization technology are available.
Optimized equipment and process configuration make trailer unloading rate maximize,operating costs saved.
Control system is of digital, remote monitoring and diagnosis.
Commissioning and operation support service
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: cryogenic pumps skid drawing
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: export to Euro
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: export to Indonesia for oil pipeline testing
Liquid Oxygen Nitrogen Argon LNG Air Ambient Vaporizer
The air ambient vaporizer designed by our company is a new generation of heat exchanger with high efficiency, environmental protection and energy saving by heating the low temperature liquid in the heat exchange tube by using the natural convection air in the atomsphere. The perfect design and strict production control make the air temperature carburettor have enough gasification capacity and can operate normally in the cold northeast China. In a certain condition, it can run continuously without interruption.
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: air heated vaporizer
Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: hydrogen pump skid
Welcome all the customers to visit our factory and cryogenic products production line working site.

---
