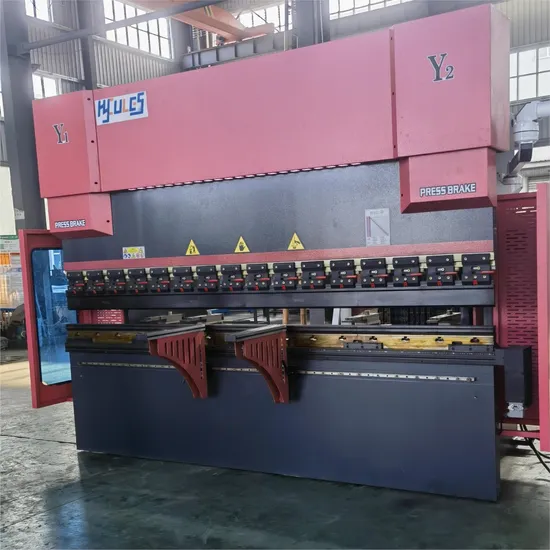

Cybtouch 8/12 PS Control System Hydraulic Automatic 40t/2500 Press Brake Bending Machine

Product Description

Product FeatureThe HYCULES CNC Lite Series Press Brake is an affordable CNC press brake with impressive features and options. Paired with an advanced Cybelec CYB Touch 12 Ps Controller supporting 2D graphics controls and at a competitive price, the High Standard series is your first choice for Y1/Y2 X R machine technology.
· Simple and Solid CNC Press Brake
· The work area can be customized, and all types of tool clamping can be installed.
· Tailored-made CNC Press Brake
· 12"Touch color screen, advanced graphic programming
Control SystemDelem is a well-known manufacturer of industrial controls for press brakes, machines used in metalworking to bend and form sheet metal.
The Delem controller is an electronic control system that manages and automates the operation of the press brake. You can choose a different control system.
Details Images• safe and fast tool change.
• substantial improvement in time consumption and related costs.
• Secure against tool falling down.
• Available in manual, pneumatic, and hydraulic models.
• Mounting: Simply from the bottom into the housing, tighten-DONE!
• Easy to mount on your press brake. Modifying the cation of the press brake is not necessary. HYCULES BGA-2 BackGauge:
Sheet Metal Press Brake 2-Axis CNC BackGauge with X, R-Axis
Hiwin Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1, Z2-axis with HIWIN linear guide
Mechanical accuracy ± 0.01 mm.
Fingers with double stop and micrometric adjustment.
Proportional valve:
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.
Advantage:
The frequency response (response frequency) is higher and can be as high as 200Hz.
It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
Closed-loop control, signal feedback.
Original German imported products, longer service life.
Product Parameters

Model	Bending Pressure(kn)	Bending Length(mm)	Column Distance(mm)	Throat Depth(mm)	Slider Stroke(mm)	Max. Opening Height(mm)	Y1,Y2-axis Down Speed(mm / sec)	Y1,Y2-axis Back Stroke Speed(mm / sec)	Y1,Y2-axis (Mm/m)	X-axis Max.Distance(mm)	Workpiece Linear Degree(Mm/m)	Back Gauge Positioning Accuracy(Mm/m)	Back Gauge Repeat Positioning Accuracy (Mm/m)	Main Motor(kw)	Length* Width* Height(mm)	Weight(T)
50T/1600	500	1600	1250	205	160	540	230	140	0.01	600	≥ 0.15	0.02mm	0.01mm	4	2200*1450*2155	3.9
80T/2500	800	2500	2000	350	170	570	230	140	0.01	600	≥ 0.15	0.05mm	0.01mm	7.5	3220*1780*2650	5.8
100T/2500	100	2500	2000	410	200	570	220	140	0.01	600	≥ 0.15	0.05mm	0.01mm	7.5	3240*1780*2680	7.8
100T/3200	1000	3200	2700	410	200	570	220	140	0.01	600	≥ 0.15	0.05mm	0.01mm	7.5	4030*1780*2680	8
100T/4000	1000	4000	3500	410	200	570	220	140	0.01	600	≥ 0.15	0.05mm	0.01mm	7.5	4830*1780*2780	9.8
110T/3200	1100	3200	2700	410	200	570	220	140	0.01	600	≥ 0.15	0.05mm	0.01mm	7.5	4030*1780*2680	8.2
110T/4000	1100	4000	3500	410	200	570	220	140	0.01	600	≥ 0.15	0.05mm	0.01mm	7.5	4830*1780*2780	10
125T/3200	1250	3200	2700	410	200	570	200	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4030*1790*2750	8.8
125T/4000	1250	4000	3500	410	200	570	200	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4830*1780*2850	11
135T/3200	1350	3200	2700	410	200	570	200	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4030*1790*2750	9
135T/4000	1350	4000	3500	410	200	570	200	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4830*1790*2850	11.2
160T/3200	1600	3200	2700	410	200	570	200	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4050*1800*2730	10
160T/4000	1600	4000	3500	410	200	570	200	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4700*1800*2830	12.2
160T/5000	1600	5000	4100	410	200	570	160	90	0.01	600	≥ 0.15	0.05mm	0.01mm	11	5700*1800*3080	15.5
160T/6000	1600	6000	5100	410	200	570	160	90	0.01	600	≥ 0.15	0.05mm	0.01mm	15	6700*1800*3180	18.5
175T/3200	1750	3200	2700	410	200	570	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4050*1800*2730	10.2
175T/4000	1750	4000	3500	410	200	570	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	11	4700*1800*2830	12.1
175T/5000	1600	5000	4100	410	200	570	160	90	0.01	600	≥ 0.15	0.05mm	0.01mm	11	5700*1800*3080	15.8
175T/6000	1600	6000	5100	410	200	570	160	90	0.01	600	≥ 0.15	0.05mm	0.01mm	15	6700*1800*3180	18.8
200T/3200	2000	3200	2700	410	200	570	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	15	4020*1850*2850	12
200T/4000	2000	4000	3500	410	200	570	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	15	4820*1850*3100	14
200T/5000	2000	5000	4100	410	200	570	160	90	0.01	600	≥ 0.15	0.05mm	0.01mm	15	5820*1850*3250	18.5
200T/6000	2000	6000	5100	410	200	570	160	90	0.01	600	≥ 0.15	0.05mm	0.01mm	15	6820*1850*3350	23
210T/3200	2100	3200	2700	410	200	570	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	15	4020*1850*2850	12.3
210T/4000	2100	4000	3500	410	200	570	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	15	4820*1850*3100	14.3
210T/5000	2100	5000	4100	410	200	570	130	90	0.01	600	≥ 0.15	0.05mm	0.01mm	15	5820*1850*3250	18.8
210T/6000	2100	6000	5100	410	200	570	130	90	0.01	600	≥ 0.15	0.05mm	0.01mm	15	6820*1850*3350	23.5
250T/3200	2500	3200	2700	410	250	420	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	18.5	3500*1700*3350	15.5
250T/4000	2500	4000	3500	410	250	620	160	140	0.01	600	≥ 0.15	0.05mm	0.01mm	18.5	4500*1700*3350	18
250T/5000	2500	5000	4100	410	250	620	130	90	0.01	600	≥ 0.15	0.05mm	0.01mm	18.5	5500*1700*3350	19
250T/6000	2500	6000	5100	410	250	620	130	90	0.01	600	≥ 0.15	0.05mm	0.01mm	18.5	6500*1700*3350	22
320T/3200	3200	3200	2700	450	300	670	150	130	0.01	600	≥ 0.2	0.05mm	0.01mm	22	3500*1700*3350	19
320T/4000	3200	4000	3500	450	300	670	150	130	0.01	600	≥ 0.2	0.05mm	0.01mm	22	4500*1700*3350	21
320T/5000	3200	5000	4100	450	300	670	130	90	0.01	600	≥ 0.2	0.05mm	0.01mm	22	5500*1700*3350	23
320T/6000	3200	6000	5100	450	300	670	130	90	0.01	600	≥ 0.2	0.05mm	0.01mm	22	6500*1700*3350	25
400T/3200	4000	3200	2700	500	300	670	150	130	0.01	600	≥ 0.2	0.05mm	0.01mm	30	3500*1700*3350	21
400T/4000	4000	4000	3500	500	300	670	150	130	0.01	600	≥ 0.2	0.05mm	0.01mm	30	4500*1700*3350	23
400T/5000	4000	5000	4100	500	300	670	130	90	0.01	600	≥ 0.2	0.05mm	0.01mm	30	5500*1700*3350	25
400T/6000	5000	6000	5100	500	300	670	130	90	0.01	600	≥ 0.2	0.05mm	0.01mm	30	6500*1700*3350	27
500T/4000	5000	4000	3500	500	300	670	150	130	0.01	600	≥ 0.2	0.05mm	0.01mm	30	4500*1900*3350	42
500T/5000	5000	5000	4100	500	300	670	130	90	0.01	600	≥ 0.2	0.05mm	0.01mm	30	5500*1900*3350	47
500T/6000	5000	6000	5100	500	300	670	130	90	0.01	600	≥ 0.2	0.05mm	0.01mm	30	6500*1900*3350	55
