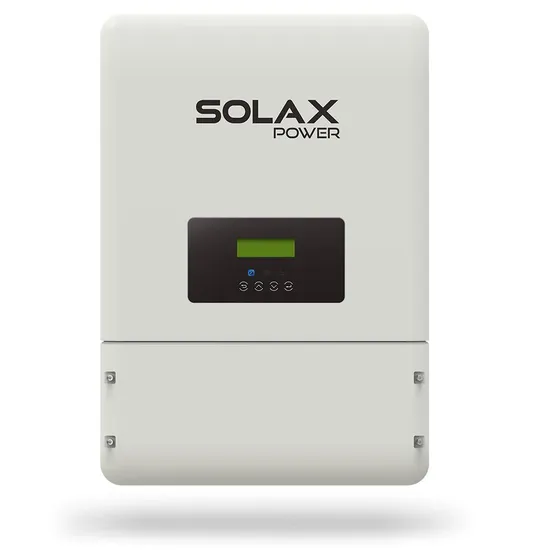

Solax 3kw 5kw 8kw 10kw Three Phase Solar Hybrid Inverter for Home

US$1,030.00 2 Pieces (MOQ)

Basic Info.

Model NO.
X1/X3
Nature of Source Flow
Passive inverter
Phase
Single,Triple
Output Power
>1000W
Certification
CE
Brand
Solax
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Pure Sine Wave
Output Type
Single,Three
Output Frequency
50/60Hz
Inverter Efficiency
99.5%
Input Voltage
48V
Protection Degree
IP65
Cooling
Smart Cooling
Installation Style
Wall-Mounted
Transport Package
Carton with Pallet
Specification
355/419/158 mm
Trademark
Solax inverter
Origin
Zhejiang, China
Production Capacity
1000 Piece/Pieces Per Month

Product Description

Product Description
Intelligent Monitoring
Specification
X1-HYBRID HV (SINGLE PHASE)
Model X1-HYBRID-3.0T X1-HYBRID-3.7T X1-HYBRID-5.0T
INPUT (DC)
Max.PV array power [Wp] 4500 5550 7500
Max.recommended DC power[W] 3000
Max.DC voltage [V] 600
Nominal DC operating voltage [V] 360
Max. input current input [A] 12
Max. short circuit current input [A] 14
MPPT voltage range[V] 125-550
Start operating voltage[V] 150
No. of MPP trackers / Strings per MPP tracker 2(1/1)
INPUT AC
Max. apparent AC power[VA] 3000 3680 4999
Max. AC current[A] 14.4 16.0 21.7
Nominal grid voltage(AC voltage range)[V] 220/230/240(180-270)
Nominal grid Frequency/range[Hz] 50/60
OUTPUT AC
Nominal AC power [VA] 3000 3680 4999
Max. apparent AC power [VA] 3300 4048(3680 for G98) 5500 (4600 for VDE4105)
Nominal grid voltage(AC voltage range) [V] 220/230/240(180-270)
Nominal grid frequency/range [Hz] 50/60
Nominal AC current [A] 13 16 21.7
Max. AC current [A] 14.3 17.6 (16 for G98) 23.9 (20 for VDE4105)
Displacement power factor 0.8 leading ... 0.8 lagging
THDi, rated power [%] <2
OUTPUT DC (BATTERY)
Battery voltage range [V] 85-400
Recommended battery voltage[V] 300
Max.continuous charge/discharge current [A] 20
Communication interfaces CAN/RS485
Reverse connect protection Yes
EPS OUTPUT (WITH BATTERY)
EPS MAX. continuous apparent power [VA] 4000 4000 5000
EPS rated voltage[V],Frequency [Hz] 230, 50/60
EPS MAX.continuous current [A] 21.7 21.7 26.0
EPS peak apparent power [VA] Duration [s] 6000 10 6000 10 8000 10
Changeover time [ms] <500 <500 <500
THDv, linear Load [%] <2 <2 <2
EFFICIENCY
MPPT efficiency [%] 99.9
Euro efficiency [%] 97.0
Max. efficiency [%] 97.8
Battery charge/discharge efficiency [%] 98.5 (PV-BAT) 97.0 (BAT-AC)
POWER CONSUMPTION
Standby consumption (Night) [W] <15 for hot standby, <3 for cold standby
STANDARD
Safety IEC62109-1/-2
EMC EN61000-6-1/EN61000-6-2/EN61000-6-3
Certification VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /VDE 2510 / and so on
ENVIRONMENT LIMIT
Degree of protection(according to IEC60529) IP65
Operating temperature range [ C] -20~+60 (derating at+45)
Max. operation altitude [m] <2000
Humidity [%] 0~100 (condensing)
Storage temperature [C] -20~+60
Typical noise emission [dB] 40
DIMENSION AND WEIGHT
Dimensions(WxHxD) [mm] 476*464*180
Weight[kg] 24
Cooling concept Natural
Topology Non-isolated
Communication interfaces Ethernet/Meter/Pocket WiFi(optional)/Pocket LAN(optional)/Pocket GPRS(optional)/DRM/USB/ISO alarm/CT
LCD display Backlight 20*4 character
Standard warranty [years] 5-10
X3-HYBRID HV (THREE PHASE)
Model X3-Hybrid-5.0T X3-Hybrid-6.0T X3-Hybrid-8.0T X3-Hybrid-10.0T
INPUT (DC)
Max.PV array power [Wp] 3000 4000 4000 5000
Max.DC voltage [V] 1000
Nominal DC operating voltage [V] 720
Max. input current input [A] 11
Max. short circuit current input [A] 14
MPPT voltage range[V] 180-950
Start operating voltage[V] 180
No. of MPP trackers 2
Strings per MPP tracker 1
INPUT AC
Max apparent AC power[VA] 5000 6000 8000 10000
Max AC current[A] 8.0 9.6 12.8 16
Nominal grid voltage(AC voltage range)[V] 400/230,380/220
Nominal grid Frequency/range[Hz] 50/60
OUTPUT AC
Nominal AC power [VA] 5000 6000 8000 10000
Max. apparent AC power [VA] 5000 6000 8000 10000
Nominal grid voltage(AC voltage range) [V] 400/230,380/220
Nominal grid frequency/range [Hz] 50/60
Nominal AC current [A] 7.2 8.7 11.6 14.5
Max AC current [A] 8.0 9.6 12.8 14.5
Displacement power factor 0.8 leading ... 0.8 lagging
TH Di, rated power [%] <3
OUTPUT DC (BATTERY)
Battery voltage range [V] 160-800
Max.continuous charge/discharge current [A] 25
Communication interfaces CAN/RS485
Reverse connect protection Yes
EPS OUTPUT (WITH BATTERY)
EPS MAX continuous apparent power [VA] 5000 6000 8000 10000
EPS rated voltage [V],Frequency [Hz] 400/230VAC,380/220VAC; 50/60
EPS MAX continuous current [A] 7.2 8.7 11.6 14.5
EPS peak apparent power IVAI Duration [ms] <10000 60 <12000 60 <14000 60 <15000 60
Changeover time [ms] <15
THDv, linear Load <2
EFFICIENCY
MPPT efficiency [%] 99.90
Euro efficiency [%] 97.00
Max. efficiency [%] 97.80
Battery charge/discharge efficiency [%] 97.0/96.0 97.0/96.0 97.5/96.5 97.5/96.5
POWER CONSUMPTION
Standby consumption(night) [W] 200 in standby mode, 15 in idle mode
STANDARD
Safety IEC62109-1-2 / IEC62040
EMC EN61000-6-1/EN61000-6-2/EN61000-6-3
Certification VDE4105 / AS4T77 / EN50549/ CEI 0-21/ G98/ G99/ GlOO
ENVIRONMENT LIMIT
Degree of protection(according to IEC60529) IP65
Operating temperature range [°C] -20~+60 (derating at+45)
Max operation altitude [m] 2000
Humidity [%] 0-100 (non-condersing)
Storage temperature [°C] -20~+60
Typical noise emission [dB] 40
DIMENSION AND WEIGHT
Dimensions(WxHxD) [mm] 457*654*228
Weight [kg] 45
Cooling concept Natural
Topology Non-isolated
Communication interfaces Ethernet/Pocket Wifi(optional)/Pocket LAN(optional)/Pocket GPRS(optional)/Meter(optional)/RS485/DRM/USB-Upgrade/lso-alarm/NTC/CAN
LCD display Backlight 2D*4 character
Standard warranty [yearsl 5-10

Packaging & Shipping
Factory
Project
Payment
Payment Term T/T EXW 30% T/T in advance, paid the balance before shipment
FOB
CFR(CNF) 30% T/T in advance, paid the balance against copy of B/L
CIF
L/C L/C amount above 50,000 usd, we can accept L/C at sight
Western Union Amount Lower than 5000usd
