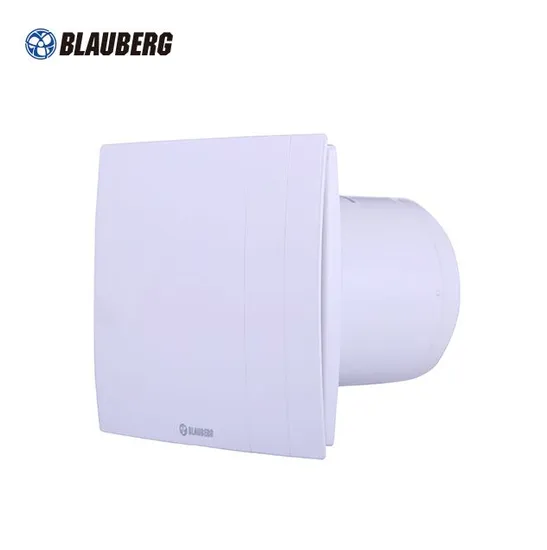

Wall and Ceiling Mounting ABS Plastic Square High Power Low Noise Air Blower Ventilating Exhaust Light Air Extractor Fan with Humidity Sensor

Product Description

Model	Quatro 100	Quatro 125	Quatro 150
Voltage[V/Hz]	220/50	220/50	220/50
Power[W]	14	16	24
Air flow[m3/h]	81	138	192
Noise level[dB(A)]	37	42	49
Weight[Kg]	0.7	0.9	1.25

Features
o Wall and ceiling mounting
o Blauberg Quatro Bivolt series models are equipped with specially designed motors compatible with both 127 V and 220 V power mains.
o Easy maintenance.
o Continuous operation
o Low-noise impeller.
o Backdraft damper
o Ball bearing motor
o Available in metallic (Quatro Platinum), aluminium(Quatro Hi-Tech), chrome (Quatro Chrome)and gold (Quatro Gold) decorations.
o 5 year warranty
Options

Model	Quatro 100/125/150
Option	S	T	ST	H	SH
Pull-cord switch	·		·		·
Timer		·	·	·	·
Humidity sensor				·	·

o Turn-off delay adjustable from 2 to 30 min.
o Humidity setpoint adjustable from 60 % up to 90 %.
Overall dimensions and mounting

Dimensions [mm]	a	a1	Φd	e
Quatro 100	171	151	100	17
Quatro 125	201	178	125	30
Quatro 150	236	207	150	35

Designation key
Quatro	Platinum	100	S	Bivolt
Model	Color	Spigot diameter	0ption	Voltage

Accessories
