Horizontal Ring Die Feed Pellet Machine for Medium and Large Pig Farms Pig Feed Pellet Machine with an Output of 3 Tons Per Hour

Product Description

Product Description
CE Factory Complete Chicken Feed Production Line / Feed Pellet Production Line Ring Die Poultry Chicken Feed Pellet Plant:
HKJ series granulator is the main machine for pressign pellet feed . It is suitable for large and medium-sized feed companies and large farmers .
Performance characteristics :
1. The machine has the characteristics of compact structure , beautiful appearance , environment protection and airtight , convenient use and reliable operation ;
2. The machine can be selected according to different needs of customers : circular/ring dies with diameters of 2mm-10mm and various apertures ;
3. This machine adopts cycloidal pinwheel reducer motor to feed , using quick release hoop and overload protection device;
4. It has the quick adjustment structure of the ring die and the roller gap, and the cutter cuts evenly .
5. Double layer modulator/single modulator is used to achieve adequate curing of feed .
6. Automatic control of feeding quantity and automatic lubrication device.

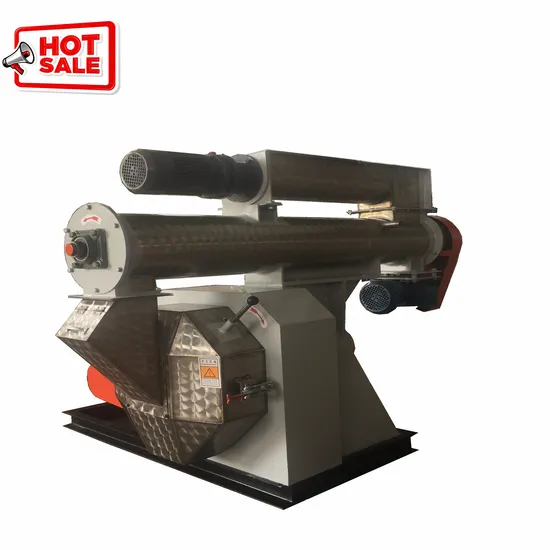

Picture of Biomass cattle rabbit animal feed pellet making pelletizer chicken pig poultry ring die animal feed pellet processing machine

Model	HKJ-250 ring die animal feed pellet machine
Main motor	22kw
Conditioner motor	1.1kw
feeding motor	0.75kw
Capacity	1000-1500kg/h
Rotation speed	380r/min
Die's inner diameter	250 mm
pellet diameter	1.5 2.5 3 4 5 6 mm
overall dimension	1762*616*1840mm
Gross weight	850kg
Usage	chicken cattle pig sheep rabbit duck poultry aquatic food fish shrimp etc.

1-2T Chicken small animal feed pellet line poultry feed pellet making machine Below is the Flowchart of 1-2TPH animal poultry chicken cattle sheep feed pellet line

I . crushing , mixing section :
101 . hammer mill . 102. Dust collector . 103. mixer 104. storage bin
II. Granulation , cooling section :
105. Elevator 106. storage bin 107. Granulator with conditioner 108. feeder , countercurrent cooler 109. cyclone dust collect 110. fan 111 . crusher ( for crumbling the pellet to small size for baby chicken , small chicken )
III . Screening , packing section :
112. Elevator 113. Grading sieve 114. storage bin 115. Automatic packing scale sewing machine 116. Conveyor belt
Electrical control center

Model specification	HKJ 406	HKJ432	HKJ508
Host power	45*2KW	55*2KW	75*2KW
Conditioner power	4KW	4KW	5.5KW
feeding power	1.5KW	1.5KW	1.5KW
Die diameter	406mm	432mm	508mm
Roller number	2	2	2
Capacity	3-8t/h	5-10t/h	5-13t/h
Dimension	2840*2150*2210mm	2840*2150*2210mm	3400*2150*2210mm
weight	3500kg	3700kg	4100kg

Different design according your different situation
Applications
Rabbit sheep chicken animal feed pellet mill pelletizer chicken livestock goat poultry extruder ring die pellet machinery .
Our Factory
Successfully installed project 5TPH chicken feed pellet line in Uzbekistan 8TPH Fish chicken pig feed pellet line in Ghana
Detailed Photos

Packaging & Shipping

Company Profile

---
