Automatic Soft Packing Facial Tissue Paper Machine Production Line

Product Description

XY-GU-A-B Automatic soft packing facial tissue paper production line Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products Video link:https://youtu.be/ZmkG6LafrRo

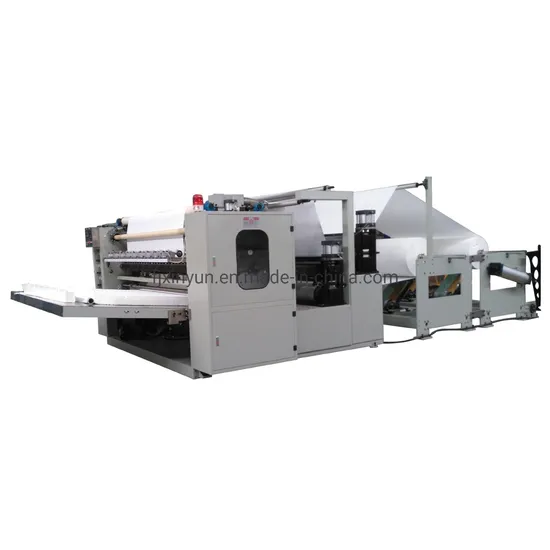

XY-GU-20A Automatic Facial Tissue Paper Making Machine Product Application The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into inter overlapped rectangular facial tissue sheets. This machine have automatic marking functions. It features of high speed , nice folding and easy operation . Features
1. Wallboard rack and Machine running stability is extremely good fast
2. Make various products width as requirement .
3. Equipped with embossing unit to keep the plies together
4.The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
Video Link: https://youtu.be/K0oJccTQke0 Production specifications

Structure	Wallboard structure
Diameter of raw material	1200mm
Diameter of raw material inner core	76.2mm
Embossing unit	Steel to steel
Slitting unit	Pneumatic slitting
Driving system	Timing belt
Output lines	2-10 lines
Weight	3.0-5.0T

Machine details
XY-GU-281 Single Channel large roundabout cutting machine. Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid. Video Link: https://youtu.be/hSRYCsqJXCU

Designation	Parameter values
The length of unfinished products	minimum 500mm(or, mini 5lines)
The Height of finished product	15~120mm
Operating speed	80~100cut/min
Round blade outer diameter	Φ610mm
Paper cutting circular knife top speed	980R/min
Finished products specification	70~300mm
Paper width	70~110mm
Cutting Length	70~300mm
Left-over Length	20~65mm
Power	11KW
Power supply	380V 50Hz
Air pressure	0.5~0.8MPa
Machine Size	4600*1700*2500mm
weight	2300~2600kg
brake	Parameter setting (auto/manual)
Stepping sharpening knife	Parameter setting (auto)
Pneumatic sharpening knife	Parameter setting (auto/manual)
The total pressure switch	Value (not)

XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine Video Link:https://youtu.be/oIzrKeMe5XU

Technical Specifications	Description	Remark
Scope of application	Facial tissue, hand towel, napkin tissue
Equipment feeding mode	ASF Full automatic	Five sections of intelligent flexible feeding mode
Max. design mechanical speed	Max. 100 bags/min	Related to specification of packing
Max. stable operation speed	70 bags/min	Related to specification of packing
Tissue length range (finished product)	120 mm- 210 mm	Over this size can be customized
Tissue height range(finished product)	40 mm- 100 mm	Over this size can be customized
Tissue width range(finished product)	90 mm- 105 mm	Over this size can be customized
Spare parts for change size	3 sets	Standard configuration quantity, the accurate specifications drawn up by the user
Machine size(L*W*H)	4600*3620*1770mm	Standard size
Machine weight	About 3000KG
Packaging materials	CPP film
Film Thickness	0.04mm-0.055mm
Max film diameter	400 mm	Over this size can be customized
Diameter of film core	76mm	In accordance with international standards
Max film width	340mm	Over this size can be customized
Air compressor	Minimum air pressure 5MPA	Equipped by user
Power supply	380V/50HZ	Following China's electric power standard
Total drive power	4.8 KW	The sum of main motor, servo motor, Sum of speed regulating motor power
Total heating power	4.6 KW	Side seal, side sealing part of heating power combined
Voltage variation	+/-10%	In accordance with international standards
I/O Output/ I/O	24VDC	Electrical control system control circuit output
Equipment motion control mode	Three axle servo and axle location control	The electronic CAM motion curve
Equipment main transmission mode	20crmnti mechanical-cam+The electronic CAM drive
Machine standard colour	Gray, International color RAL 7032	The international color card color number RAL7032
Packaging style	Three-dimensional wrapping	vertical sealing first and then two side sealing

XY-GU-26B High quality multi bags tissue paper middle packing machine This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine ssemble paper-feeding, bagging, sealing and cuting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature controll accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging. Video Link:https://youtu.be/q_H9E44o1PM

Model	XY-GU-26B High quality multi bags tissue paper middle packing machine
speed	10-15bags/min
Packing dimension	135-190*90-100*60-80 mm( the width will be selected by customer)
Power	1.2 KW 380V 50Hz
Air supply	0.6 Mpa (prepared by buyer)
Overall size	4800*2000*1350 mm
Weight of machine	600 Kg

Packing and Shipping
Workshop
After Sales Service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price. 2. Good service: Any question from customer will be reply within 24 hours. For all the machines we sell, we will offer two-years guarantee for free and all life maintenance. We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy. After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Company Introduction
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2)Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line. Welcome to send us An Inquiry,we will reply you everything as soon as possible,thank you.

---
