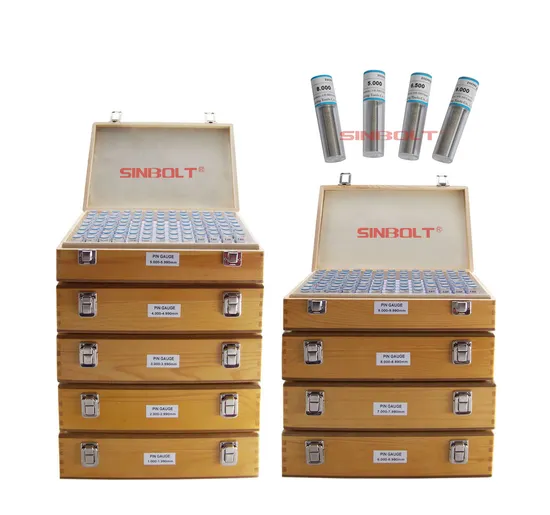

High Precision Pin Gauge Set 1.000-10.000mm, 901PCS

Product Description

Chinese good brand. Reliable supplier of high precision pin gauge
Source factory, sufficient supply, fast delivery
Welcome to compare the quality, welcome the third party testing institutions testing
Focus on the production of high-quality pin gauge, service professional quality customers
Welcome precision manufacturing industry, testing institutions, scientific research institutions, high quality requirements of customers to order
Pin Gauge Set ,Plug Gauge Set,1.000mm--10.000mm(Interval: 0.01,901pcs)
Pin gauges:0.100mm-20.00mm spot supplies ,Specifications above 20mm need to be customized.
Our Features:
1,absolutely no fake, refused to copy, reject inferior products
2,all products have to undergo a rigorous inspection
3,complete specifications, a lot of inventory
4, rapid delivery
5,our company main production processing and OEM customers
different labels and logos can be printed according to the requirements of customers , and different packaging modes and personalized laser marking can be selected .
Features :
1.High precise(±0.001mm)
2.Hardness:58-62HRC
3.Laser marking size, size is quite clear.
4.Pin gauges and pin gauge set:
5.Include metric and inch sizes,
6.materials as steel, ceramic and carbide and so on.
7.Uniform 50mm(2") length
Uses:
* Measuring location of hole
* Measuring hole sizes and depths
* Go and No-Go gauging
* Measuring Width of slot
* Checking distances between holes.
Pin gauge is widespread used for electronic tablet, circuit board, mold, Precision machinery manufacturing, etc
Our company has great stock of Pin gauge, we promise can supply goods in time, nonstandard goods is also available, If you
have any question ,please feel free to contact with us.

Metric Pin gauge
Range(mm)	Tolerance	Interval	Example	Quantity	Type
0.100-1.000	±0.001	0.01	0.100,0.110,0.120......0.980,0.990,1.00	91pcs	ST-01
1.000-1.990	±0.001	0.01	1.000,1.010,1.020......1.970,1.980,1.990	100pcs	ST-02
2.000-2.990	±0.001	0.01	2.000,2.010,2.020......2.970,2.980,2.990	100pcs	ST-03
3.000-3.990	±0.001	0.01	3.000,3.010,3.020......3.970,3.980,3.990	100pcs	ST-04
4.000-4.990	±0.001	0.01	4.000,4.010,4.020......4.970,4.980,4.990	100pcs	ST-05
5.000-5.990	±0.001	0.01	5.000,5.010,5.020......5.970,5.980,5.990	100pcs	ST-06
6.000-6.990	±0.001	0.01	6.000,6.010,6.020......6.970,6.980,6.990	100pcs	ST-07
7.000-7.990	±0.001	0.01	7.000,7.010,7.020......7.970,7.980,7.990	100pcs	ST-08
8.000-8.990	±0.001	0.01	8.000,8.010,8.020......8.970,8.980,8.990	100pcs	ST-09
9.000-10.00	±0.001	0.01	9.000,9.010,9.020......9.970,9.980,10.0	101pcs	ST-10
1.000-10.00	±0.001	0.1	1.000,1.100,1.200......9.800,9.900,10.0	91pcs	ST-11
1.000-10.00	±0.001	0.01	1.000,1.010,1.020......9.970,9.980,10.0	901pcs	ST-12
0.500-2.500	±0.001	0.01	0.500,0.510,0.520......2.480,2.490,2.500	201pcs	ST-13
0.100-5.000	±0.001	0.05	0.100,0.150,0.200......4.90,4.950,5.000	99pcs	ST-14
5.00-10.00	±0.001	0.05	5.000,5.050,5.100......9.900,9.95,10.00	101pcs	ST-15
0.100-10.00	±0.001	0.05	0.100,0.150,0.200......9.900,9.95,10.00	199pcs	ST-16
0.200-2.675	±0.001	0.025	0.200,0.225,0.250......2.625,2.650,2.675	100pcs	ST-17
2.700-5.175	±0.001	0.025	2.700,2.725,2.75.......5.125,5.150,5.175	100pcs	ST-18
5.200-7.675	±0.001	0.025	5.200,5.225,5.250......7.625,7.650,7.675	100pcs	ST-19
7.700-10.00	±0.001	0.025	7.700,7.725,7.750......9.950,9.975,10.00	93pcs	ST-20
10.00-12.00	±0.002	0.01	10.00,10.01,10.02......11.98,11.99,12.00	201pcs	ST-21
12.01-13.00	±0.002	0.01	12.01,12.02,12.03......12.98,12.99,13.00	100pcs	ST-22
13.01-14.00	±0.002	0.01	13.01,13.02,13.03......13.98,13.99,14.00	100pcs	ST-23
14.01-15.00	±0.002	0.01	14.01,14.02,14.03......14.98,14.99,15.00	100pcs	ST-24
15.01-16.00	±0.002	0.01	15.01,15.02,15.03......15.98,15.99,16.00	100pcs	ST-25
16.01-17.00	±0.002	0.01	16.01,16.02,16.03......16.98,16.99,17.00	100pcs	ST-26
17.01-18.00	±0.002	0.01	17.01,17.02,17.03......17.98,17.99,18.00	100pcs	ST-27
18.01-19.00	±0.002	0.01	14.01,14.02,14.03......14.98,14.99,15.00	100pcs	ST-28
19.01-20.00	±0.002	0.01	14.01,14.02,14.03......14.98,14.99,15.00	100pcs	ST-29
10.01-15.00	±0.002	0.01	10.01,10.02,10.03......14.98,14.99,15.00	500pcs	ST-30
15.01-20.00	±0.002	0.01	15.01,15.02,15.03......19.98,19.99,20.00	500pcs	ST-31

---
