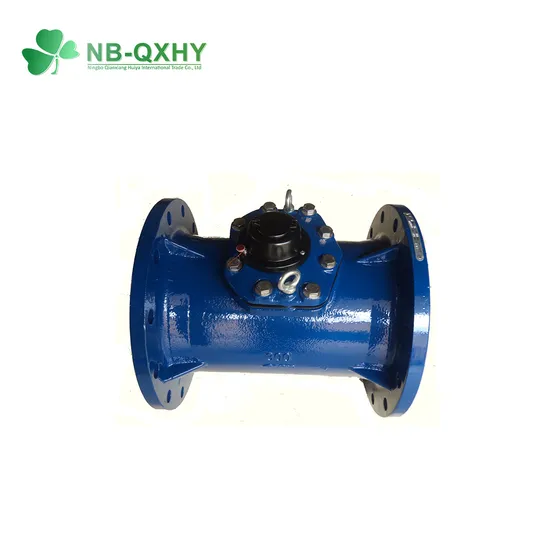

Big/Small Intelligent Multi-Jet Caliber Wireless Water Meter with Battery Powered

Product Description

Big/Small Intelligent Multi-Jet Caliber Wireless Water Meter with Battery Powered
1. Product Description
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
2. Product Feature
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
3. Working Condition
Water temperature: 0.1ºC~40ºC ( 0.1ºC~90ºC for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)
4. Maximum Permissible Errors
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
5. Product Specifications

Type	Size (mm)	Class	qs Overload Flow	qp Permanent Flow	qt Transitional Flow	qmin Min. Flow	Min. Reading	Max. Reading
			m3/h				m3
LXLC-80	80	A	80	40	12	3.2	0.002	999,999
		B			8.0	1.2
LXLC-100	100	A	120	60	18	4.8	0.002	999,999
		B			12	1.8
LXLC-125	125	A	200	100	30	8	0.002	999,999
		B			20	3
LXLC-150	150	A	300	150	45	12	0.002	999,999
		B			30	4.5
LXLC-200	200	A	500	250	75	20	0.002	999,999
		B			50	7.5

Type	Size		L Length		H Height	Connecting flange
						φD1 Outside diameter	φD2 Bolt circle diameter	Connecting Bolts (n-M)
	mm
LXLC-80	80	225		279		200	160	8-M16
LXLC-100	100	250		289		220	180	8-M16
LXLC-125	125	250		299		250	210	8-M16
LXLC-150	150	300		319		285	240	8-M20
LXLC-200	200	350		346		340	295	8-M20(1.0MPa)
								12-M20(1.6MPa)

Code	Description	Material	QTY
1	Screw For Sealing	Stainless Steel	1
2	Cover With Lid	Assembly	1
3	Sealed Register	Assembly	1
4	Screw M4×20	Stainless Steel	2
5	Gasket	Brass	2
6	Adjusting Nut	Brass	1
7	Flange Cover	Cast Iron	1
8	O-ring	Silicon Rubber	1
9	Bush	Brass	1
10	Gasket	Synthetic Rubber	1
11	Adjusting Lever	Brass	1
12	Connecting Lever	POM OR MPPO	1
13	Adjusting Plate	POM OR MPPO	1
14	Support	ABS OR MPPO	1
15	Turbine Component	Assembly	1
16	Rectifier	ABS OR MPPO	1
17	Screw	Brass	1
18	O-ring	Synthetic Rubber	1
19	Body	Cast Iron	1
20	Screw For Sealing	Stainless Steel	1
21	Screw For Sealing	Stainless Steel	3
22	Support	ABS	1
23	Screw M4×20	Stainless Steel	2
24	Gasket	Stainless Steel	4
25	Upper Bearing Plate	Brass	1
26	Upper Bearing	Nylon With Graphite	1
27	Magnet Component	Component	1
28	Transmission Shaft	Stainless Steel	1
29	Sheath	Nylon	2
30	Bevel Gear	POM	1
31	Bevel Gear	Nylon	1
32	Gasket	Stainless Steel	4
33	ScrewM5X12	Stainless Steel	4
34	Nut	Brass	1
35	Gasket	Brass	1
36	Turbine Shaft Hold	Brass	1
37	Turbine Shaft	Tungsten Steel	1

6. Workshop and Package Picture
7. Our Certifications
8. Our Factory
9. Our Service
Our Advantages:
(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(2) Well and high quality control, within 1% leakage;
(3) Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6) Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized;
(8) Widely used in building, irrigation, industry and swimming pool;
(9) Small order acceptable;
(10) Customer's design and logo are welcome.
Why Us? (1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;
(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!
(4) Our high quality PVC valve can be consistent with European and American national brand valves!
(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!
(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.
(7) We can flexible from China any port export! Welcome you inquiry us!

---
