Automatic 2023 Hot Sale Electric 6 Sheet Metal Brake Price for Sale

Product Description

Product Description

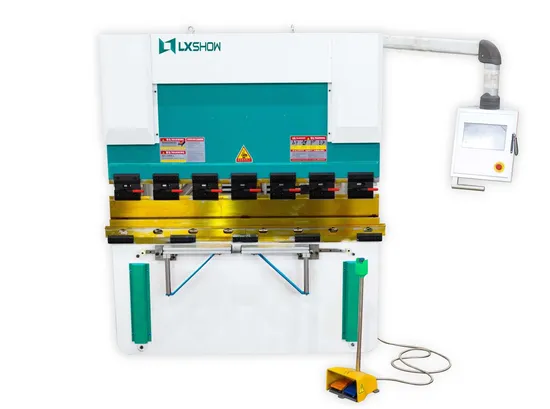

Lxshow Cnc Hydraulic Sheet Metal Pressbrake Machine
1. The sliding block adopts the torsional shaft synchronization mechanism, and the two ends of the torsional shaft are installed with high precision taper centering bearing (K type), and the left end is equipped with eccentric adjusting mechanism, making the sliding block synchronous adjustment convenient and reliable.
2. The use of upper die deflection compensation mechanism, through adjustment can make the upper die mouth on the full length of the machine to obtain a specific curve, to compensate for the mechanical loading table and slide produced by the deflection, improve the workpiece bending accuracy.
3. In the Angle adjustment, the worm gear reducer drives the formation of the movement of the mechanical block in the cylinder, and the value of the cylinder position is displayed by the travel counter.
4. The upper and lower adjusting mechanism is arranged at the fixed place of the workbench and the wall panel, which makes the adjustment convenient and reliable when the bending Angle is slightly different.
5. The column right side is equipped with remote pressure regulating valve, so that the size of the system pressure adjustment, convenient and reliable.
Product Parameters
Main Technical Parameters

Name	Parameters
Nominal Pressure	300KN
Length of Table	1600mm
Distance between Housings	1260mm
Throat Depth	190mm
Ram Stroke	80mm
Open Height	300mm
Overall Dimensions	1700*1100*1800mm
Main Motor	4kw

Main specification

Model	Weight (t)	Cylinder Diameter (mm)	Stroke (mm)	Wallboard (mm)	Slider (mm)	Bench Riser (mm)
WC67K-30T1600	1.4	95	80	18	20	20
WC67K-40T2200	2.1	110	100	25	30	25
WC67K-40T2500	2.3	110	100	25	30	25
WC67K-63T2500	3.6	140	120	30	35	35
WC67K-63T3200	4	140	120	30	35	40
WC67K-80T2500	4	160	120	35	40	40
WC67K-80T3200	5	160	120	35	40	40
WC67K-80T4000	6	160	120	35	40	45
WC67K-100T2500	5	180	140	40	50	50
WC67K-100T3200	6	180	140	40	50	50
WC67K-100T4000	7.8	180	140	40	50	60
WC67K-125T3200	7	190	140	45	50	50
WC67K-125T4000	8	190	140	45	50	60
WC67K-160T3200	8	210	190	50	60	60
WC67K-160T4000	9	210	190	50	60	60
WC67K-200T3200	11	240	190	60	70	70
WC67K-200T4000	13	240	190	60	70	70
WC67K-200T5000	15	240	190	60	70	70
WC67K-200T6000	17	240	190	70	80	80
WC67K-250T4000	14	280	250	70	70	70
WC67K-250T5000	16	280	250	70	70	70
WC67K-250T6000	19	280	250	70	70	80
WC67K-300T4000	15	300	250	70	80	90
WC67K-300T5000	17.5	300	250	70	80	90
WC67K-300T6000	25	300	250	80	90	90
WC67K-400T4000	21	350	250	80	90	90
WC67K-400T6000	31	350	250	90	100	100
WC67K-500T4000	26	380	300
WC67K-500T6000	40	380	300

Product Details
Control System:Estun E211 Easy to operate: This system has multi-step programming, can be changed at any time different sizes.
2 Manual function: Convenient debugging and installation, with manual mode to adjust the required size.
Front Bracket
Placed on the side of the table, fixed by screws. It can be used as support when bending wide and long plates.Back Barrier
The rear stopper mechanism with T-type lead screw matching rod is driven by motor. Positioning stop refers to the aluminum alloy beam can easily move around and bend the workpiece at will.Electrical MachineryDistribution Box
Sample Show
Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall bechanged free of charge(some parts will be maintained) when if any problem during the warranty period. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.

---
