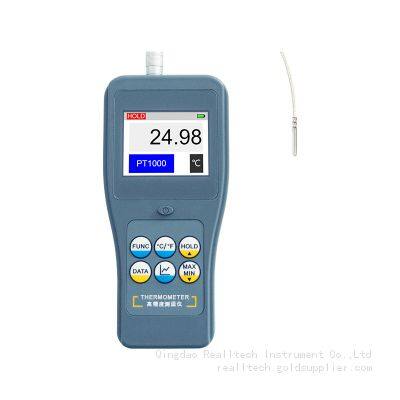

RT1561 High-precisionThermal Resistance Thermometer
Introduction
Rt1561 is a high-precision RTD thermometer that uses PT1000 /Pt100 platinum thermal resistance as a sensor to measure temperature signals. Large Color LCD display, 0.01°C high resolution, accuracy up to ±0.1°C. With real-time measurement graph display function. With data storage and view functions. Widely used in industrial production, research and development experiments, food processing, refrigerated storage, precision temperature measurement and other occasions.
Features
l Large color LCD with display.
l High-precision PT1000/PT100 platinum thermal resistance is used for temperature measurement.
l Temperature unit (°C/°F).
l 0.01 high resolution.
l Accuracy up to ±0.1°C.
l With real-time measurement graph display function.
l With data storage and view functions (99 Groups).
l With automatic statistics function of maximum, minimum and average values during the measurement period.
l With the displayed values hold function.
l With battery indication function.
l With automatic power off function.
Product Specifications
Display
Color LCD
Type
Pt1000/PT100 Platinum Resistance
Range
-200~850°C (-328~1562°F)
(Depend on Probe)
Accuracy
±0.1°C (Including Probe)
Resolution
0.01
Sampling Channel
1 Channel
Unit
°C/°F
Graph Display
Real-time Measurement Graph
Data Storage Mode
Manual Mode, Data can be Viewed
Data Storage
99 Groups (Can be Customized)
Statistical Functions
Maximum, Minimum, Average
Auto Power Off
10 Minutes (No Operation)
Operating Conditions
Temperature: 0~50°C;
Humidity: 0~90%RH (No Condensation)
Storage Conditions
Temperature: -10~50°C;
Humidity: 0~95%RH (No Condensation)
Power Supply
4×1.5V AAA(UM-4)Battery
Size
170*80*31mm
Weight
163g (Not Including Batteries)

Standard Accessories
Main Unit
1
PT-01A Probe
1
Manual
1
Carrying Case
1

PT-01A Probe Specifications
Type
PT1000
Range
-50~200°C (-58~392°F)
Size (φ*L)
4*20mm
Note:If other type of probe is needed, please specifying when placing order.
The warranty period is 12 months
