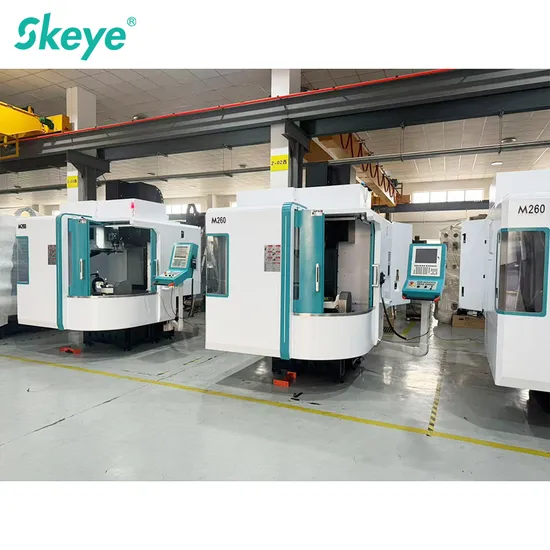

Efficient Lynuc System 5-Axis CNC Machine M260 with 48t Tool Magazine

Product Description

Product Description
Product Parameters

Item	unit	M260
Travels
Spindle center to turntable table (A90 °)	mm	0-300
Distance from spindle end face to turntable surface (A0 °)	mm	50-500
X-axis	mm	700
Y-axis	mm	700
Z-axis	mm	500
Worktable
Worktable size	mm	Ø260
Workbench load-bearing capacity (horizontal/inclined)	kg	120/75
A/C axis angle range	°	±110/360
Maximum speed of A/C shaft	rpm	300
A/C axis drive mode		DDR
A/C axis segmentation accuracy	"	10
A/C axis repeatability	"	8
Spindle
Spindle specification		Bt40
Spindle drive		Direct Connection
Max.speed of spindle	rpm	15000
Spindle power	kw	7.5/11
Three axis power
X axis rail servo motor	kw	1.8
Y axis rail servo motor	kw	1.8
Z axis rail servo motor	kw	2.9
Rail screw
X-axis rail specification		30roller
Y-axis rail specification		30roller
Z-axis rail specification		30roller
Specification of X-axis ball screw		3210
Specification of Y-axis ball screw		3210
Specification of Z-axis ball screw		3210
Rapid Speed
X/Y/Z axis rapid speed	m/min	30/30/30
ATC Auto Tool Magazine
Tool taper		BT40
Tools capacity	pcs	24T
Maximum tool diameter(no adjacent tool)	mm	80
Maximum tool length	mm	230
Maximum tool weight	kg	7
VDI3441
(VDI3441) Positioning	mm	P0.008
(VDI3441) Repeatability	mm	Ps0.006
Basic parameters
Dimension(L*W*)	mm	1900*2500
Mechine height	mm	2600
Mechine weight	kg	4800

Standard proximity and function
1.Rhenium Sodium N3E Five Axis Control System		11.Handwheel
2.BT40-120-15000 direct spindle		12.Work light
3.Five axis rotary table		13. Warm light
4.Spindle coolant system		14.Transformer
5.Spindle blushing		15.Water gun
6.Cutting coolant system		16.Air gun
7.Tank and waterbox		17.Rigid tapping
8.Automatic lubrication system		18.Manual loosening device
9.Telescopic cover of triaxial rail		19.Presetter
10.Heat exchanger		20.24T arm type magazine

OUT LOOK SIZE
Detailed Photos
Company Profile

Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
