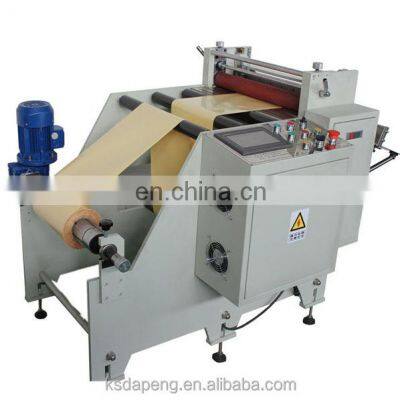

PET PC PVC PCB FPC sheeting machine with automatic unwinder Function characterision :Machine adopted imported PLC overall control with touch screen display ,simple and ease of operation. Fast cutting speed,high precision. Scope applicable:It is applicable for the cutting of PVC film ,insulation sheet,Mylar,foam ,industrial tape, electronic tape and various inch setting ,entirely broken and paritially broken electronic materials. 360/500 precision computer control sheet cutter A Configuration List Touch Screen MCGSBeijingPLCMitsubishiJapanServo driversDeltaTaiwanservo-actuatorDeltaTaiwanCutting motor (DC electric machine)ShenliTaiwanAC contactorSchneiderShanghaisolid-state relay (SSR) 20AOmronJapanmagic eye (if you do need , please tell us )OmronJapanUnwind shaft TongzeChangzhou B Main Technical Data Item No.DP-360/500Power1/2HPVoltage1 phase 220VNet weight180KG for DP-360/ 250KG for DP-500Cutting length0.1--9999.9MMCutting width1-360MM/1-500MMCutting speed130time/minutes(1-180MM)Cutting precise±0.05MMCutting function Through cutThe cutting thickness is according to the material , If metal type like Aluminum foil or copper foil , the thickness is about 0.02mm to 0.6mm , and if unmetal material , like paper , films , thickness is from 0.05mm to 1mm , and if cutting foams , is max 8mm Machine Picture Machine Structure : ModelDP-800 DP-1000Voltage4HP6HPPower380V380VN.W. 1800KG2000KGSheeting Length 0.1-9999.9mm0.1-9999.9mmSheeting width1-800mm1-1000mmSheeting precision±0.05mm±0.05mm(0-180mm)Sheeting speed 75(cut/min)75(cut/min)Machine size3200x1650x1250mm3200x2150x1250mm
>>
