Vacuum High Speed Disperser Machine for Coating Ink Industry

Product Description

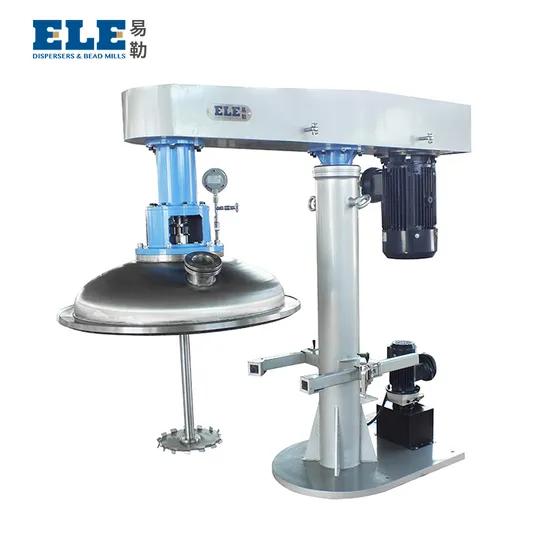

Pneumatic lifting disperser mixer
Product Introduction
It is widely used in coating,fuel,ink,papermaking,adhesives,medicine,chemical industry and other industries to stir,mix,dissolved and disperse two or more kinds of liquid and dolid powder.
Product Features
1)The Hydraulic high speed dispersing machine is suitable to all kinds of liquid to pre-mix,disperse,color matching etc.
2)High efficiency production,hydraulic lifting,frame can turn around flexible.
3)When mixing and dispersing,there is little air suction,it can around flexble.
4)When mixing and dixpersing,there is a litttle air suction,it can dissolve the material quickly and particle become finer.
5)Mixing and shearing effect are good.
6)This model is particularly suitable for high-volume selection. Technical Parameters

Model	Main Power(kw)	Speed(rpm)	Diameter of disc(mm)	Stroke(mm )	Pump Power(kw )	Length (mm)	Height(mm )	Centre Distance(mm)
EBF-4	4	1400	100`200	700	0.75	1400	1420	580
EBF-7.5	7.5	1400	200`300	900	1.1	1650	1850	765
EBF-11	11	1400	200`300	900	1.1	1650	1850	765
EBF-15	15	1400	200`300	900	1.1	1800	1850	915
EBF-18.5	18.5	1250	300`400	1200	2.2	1800	2120	1100
EBF-22	22	1250	300`400	1200	2.2	2360	2120	1250
EBF-37	37	1250	300`400	1200	2.2	2520	2120	1400
EBF-45	45	1250	400`500	1500	2.2	2830	2750	1400
EBF-55	55	1250	400`500	1500	2.2	2830	2750	1500

If anthing we can do for you,please contact Anas directly,thanks. Welcome to contact us

---
