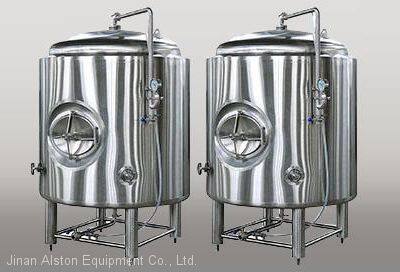

Vertical Stainless Steel Jacket Bright Beer Tank 500L-20000L

Product Details

Product Description

Product Description
Vertical Stainless Steel Jacket Bright Beer Tank 500L-20000L
BBT, Bright Beer Tanks, cylindrical pressure tanks, serving tanks, beer final conditioning tanks, beer storage tanks – these are the most common terms, including the same class of special pressure vessels designed to preparation of carbonated beer before its bottling, filling into kegs or other containers. Purified carbonated beer is pushed from lager beer tanks or cylindrically-conical tanks into pressure storage beer tank under pressure up to 3.0 bar.
Description
BBT, Bright Beer Tanks, cylindrical pressure tanks, serving tanks, beer final conditioning tanks, beer storage tanks – these are the most common terms, including the same class of special pressure vessels designed to preparation of carbonated beer before its bottling, filling into kegs or other containers. Purified carbonated beer is pushed from lager beer tanks or cylindrically-conical tanks into pressure storage beer tank under pressure up to 3.0 bar.
This tank type also serves as a target tank when beer filtering or beer pasteurisation.
Standard Setup
Type: Double Sayer Conical Tank, Single Wall Conical Tank.
Volume: 1HL-300HL, 1BBL-300BBL. (Support Customized).
Features
1.Safety:
All tank fabrication procedures follow a strict quality control program.
Control panel lockout switches for brewer safety standard item on systems..
Brewhouse vessel orientation designed to prevent boil over danger to brewer.
Overflow tube on all hot and cold liquor tanks.
2.Flexibility
Design and customize equipment to meet individual customer’s site and capacity requirements.
Range of brewing options including half or double batches, high gravity beers, infusion, temperature profile and decoction brewing.
Kettle heating options including electric, direct fire or steam, depending on site and local utility costs.
Top or side manways (with hop dosing port) on cellar tanks.
3.Easy to installation and use
Fast installation due to precision pre-fitted piping at factory and quick on-site reassembly time.
Adjustable legs on vessels for ease of levelling and final placement.
The systems are designed by brewers and engineers providing a simple design that’s easy to use, safe and highly efficient.
Simple and easy-to-operate brewing pipeline, clamp or round thread connection, no dead corners, convenient and practical;
4.Durablity
High-quality selection of accessores equipment for improved long-term system performance and low maintenance costs.
Industry-leading 5 year warranty on all fabricated vessels for long-term hassle-free operation.
Stainless steel work platform for integrity, no rusting and long life.
Tanks are tested prior to shipment to avoid on-site repairs, guarantee uninterrupted startup and assured vessel performance.
5. Standard Configurations&Technical Characteristics
-Total volume:20% free space; Effective volume: as request.
-All AISI-304 Stainless Steel or 316 Stainless Steel Construction
-Jacketed & Insulated
-Dual Zone Dimple Cooling Jacket
-Dish Top & 140° Conical Bottom
-4 Stainless Steel Legs with Leveling Ports
-Top Manway or Side Shadow less Manway
-Racking Port with Tri-Clover Butterfly Valve
-Discharge Port with Tri-Clover Butterfly Valve
-2 Tri-Clover Outlets with Butterfly Valves
-CIP Arm and Spray Ball
-Sample Valve
-Pressure Gauge
-Safety Valve
-Thermowell
-PU level

---
