Nylon Extruder Machine Film Blowing Machine

Product Description

Product Description

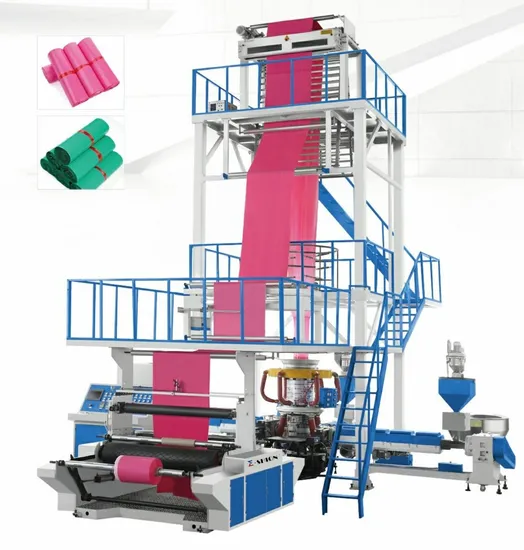

The 3 layers film blowing line is composed in three extruders and auxiliary parts.It can be used for blowing with HDPE and LDPE,LLDPE, metallocene polyethylene, etc.through the extrusion die head to form three layer complex composite film.With greatly improving the physical properties of the films and an increase of strength, so that the films featured in good obstruct properties and air tightness.This thin film barrier properties, thermal insulation, waterproof,anti- frost, oxygen barrier, oil resistance and other excellent
It can be widely used in heavy packaging, such as fruits, meat dishes, pickles, fresh milk, liquid beverages, etc.
Product Parameters
Main Technical Variables:

Model	SJ-45×3/FM1000	SJ-50×3/FM1200	SJ-55×3/FM1500	SJ-60×3/FM2000	SJ-65×3/FM2500
Screw diameter	Ф45mm	Ф50mm	Ф55mm	Ф60mm	Ф65mm
Screw ratio L/D	30:1	30:1	30:1	30:1	30:1
Screw speed	15-120r/min	15-120r/min	15-120r/min	15-120r/min	15-120r/min
Main motor power	11kw×3	15kw×3	18.5kw×3	22kw×3	30kw×3
Extrusion output(single)	100kg/h	120kg/h	150kg/h	180kg/h	200kg/h
Range of die( THE DIE HEAD CAN BE SPECIAL ORDERED)	Ф200/ Ф250	Ф200/ Ф250	Ф250/ Ф300	Ф500	Ф600
Single-sided thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.03-0.10mm	0.03-0.10mm
Max. Folding width of film	1000mm	1200mm	1500mm	2000mm	2500mm
Electric total capacity	76kw	88kw	102kw	130kw	156kw
Overall dimension	6600×4100×5000mm	6800×4300×6000mm	7000×4800×6800mm	7800×5300×8600mm	8600×6200×9600mm
Weight of machine	4.2T	5.3T	6.2T	8.6T	10.6T

Certifications
FAQ
1.:Are you factory or trading company ?
we are factory specialized in plastic machine for many years ,all of our engineer with more than 20 years experience .
2. Where is your factory? How can i visit your company?
our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train).we will pick you up on airport or station .welcome to visit our factory
3 How long is your delivery time?
On normal our delivery time is 30-45 days .if you need it ugently ,we can make your machine first.about 10 days
4.:What's your warranty policy?
18 month guarantee and whole life maintance ,

5:What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost .

6:Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
7:What are your terms of payment?
We accept T/T, L/C. western union.
8. How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
