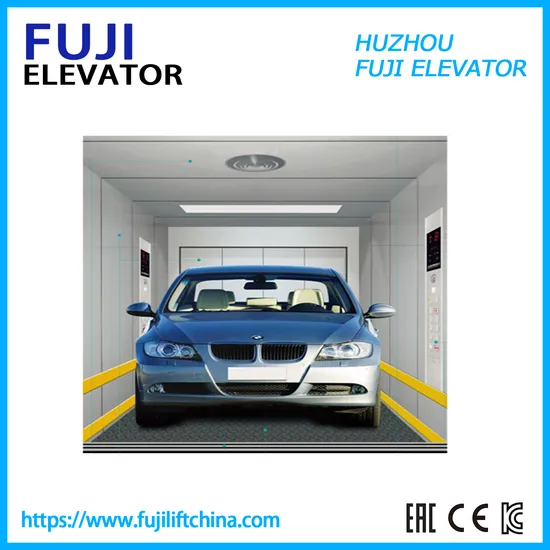

Automobile Car Elevator with Large Space

Product Description

About car elevator
FUJI intelligent automobile elevator introduced the well-developed international automobile elevation technology.Automobile elevator has been developed and manufactured through absorption,conversion and enhancement.Advanced technology removes bad factor of shaking car.It is due to noise out of burdened traction system,uneven force to elevator car.It optimizes the characteristics of the product series.
1. How to provide you with after-sales service
1) The factory will provide an installation manual for your technical staff.
2) The factory can provide remote guidance for accurate commissioning.
3) For special requirements, the factory can send engineers to the site to help guide the installation.
4) For our agents, FUJI welcomes you to send technicians to our factory for inspection.
2. How to report after-sales problems
1) Please tell us the factory number or contract number, the factory can check the product specifications according to the code and quickly give a solution.
2) Send an email or call the foreign trade personnel who handed over.
Features of car elevators
(1) the load of elevator increases and decreases rapidly, and the stress of car is not uniform. This is very different from the way ordinary freight ladders load or unload the load gradually. The structure design of automobile elevator should adapt to this characteristic.
(2) the car is equipped with two control button boxes, and the driver can control the elevator without stepping out of the car;
(3) the rated load capacity is more than 3 tons, and the car area is large enough to accommodate all kinds of small cars;
(4) the setting of the front and rear through door facilitates the car to get in and out of the elevator
Car elevator parameters

Capacity(KG)	Speed(m/s)	Car Size (WxDxH)mm	Door Opening(WxD)mm	Shaft Size(WxD)	OH(mm)	Pit Depth(mm)
3000	0.25/0.5	2700x5800	2400x2200	4100x6160	4800	1600
5000	0.25/0.5	3500x7200	2600x2200	4750x7560	4800	1600

Standard Functions

1	Automatic stop	16	Anti-mischief function
2	Self-diagnostic of call button embedding	17	Auto-running of full-load
3	Car ventilation, light shut off automatically	18	Press hall button for re-opening
4	Repeat open/close door	19	Door load sensor
5	infrared Light curtain protection	20	Arrival tip
6	Fire running function	21	Self-diagnostic of elevator fault
7	Automatic lock/unlock the door	22	Current floor automatic opening of call
8	Terminal landing speed-adjustment by enforcement	23	Terminal landing prevention of offside
9	With/without driver operate	24	Overhaul running operation
10	Drivers choose orientation function	25	Auto- stop and rescue fault
11	Overload voice-light alarm and protection functions	26	The protection of high speeding
12	The preventation of no-stopping for enforce	27	Self-save information data of hoist way
13	The record of current floor calls	28	Automatic function of directional and changing direction
14	Internal auto-response and deceleration	29	Power-fail data protection
15	Running signal fault protection	30	Five-party interphone

It bears any heavy load at ease it dares to meet any challenges
Properties of FUJI elevator are better than that of other same kind elevators.Outstanding structure and high strength car design are superiorly applicable for various operational environments.From factory;production line;exhibition hall to warehouse;shopping center;FUJI freight elevator always offers safe and effective goods transport plans.
Safety guarantee,stable transport
Acording to goods category and habit,it sets proper door-closing time.It protects safety of passenger/goods entry/exit.It is equipped with specially designed shock-absorbing mechanism.It increases more secure and comfortable operation.It applies high strength section material for car manufacture.It can bear heavy load without deformation.Car bottom applies doubled consolidation design.It can bear various weights from different goods.

---
