Product Details
Product Description
Product Description

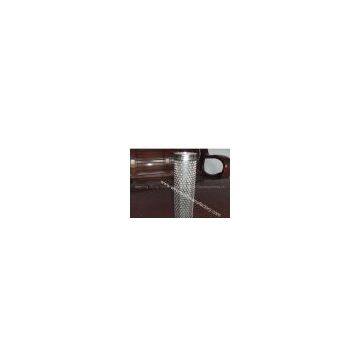

Wire mesh cylinder screen
Dimension :40mm-350mm
Edge closed plate material :SS plate , Alum.plate.
Plate thickness: 0.5-1.2mm
1 - Perforated stainless steel can be used as filter media alone for the removal of course particles, or as the
support structure for wire mesh or synthetic type filter elements from 3-10 mm. According to hole size and spacing,
For suitable holes with rounds,Square, The cylinder or tube welding design provides.
Plate
Material
| Thickness of
Metal (mm)
| Hole
Dia. (mm)
| Pitch
(mm)
| Porosity
(%)
| Weight
(kg/m2)
|
Stainless steel plate
304.316.316L
| 0.5
| Ø 1
| 1
| 19.6
| 3.14
|
0.8
| Ø 1.5
| 1.5
| 19.6
| 5
|
1
| Ø 2
| 2
| 19.6
| 6.28
|
2
| Ø 5
| 16
| 19.6
| 6.28
|
3
| Ø 4
| 16
| 19.6
| 4.23
|
2 - Wire mesh filter screens are wrapped tightly around and welded to a perforated stainless steel backer
screen. For Fine wire mesh and finer filter elements, a course mesh drainage layer is placed between the fine mesh and the perforated backer screen for structural support, to disperse the flow and assure full utilization of the screen surface, and to eliminate the dead spots that would otherwise be created.
Fine mesh screen of layer
Mesh
| Wire dia.
| Opening
| Opening area
|
20 x20mesh
| .020in/.508mm
| .0300in/.76mm
| 36.0
|
20x20mesh
| .016in/.406mm
| .0340in/.86mm
| 46.2
|
30 x30mesh
| .013in/.330mm
| .0203in/.52mm
| 37.1
|
30 x30mesh
| .012in/.305mm
| .0213in/.54mm
| 40.8
|
30x 30mesh
| .009in/.229mm
| ..0243in/.62mm
| 53.1
|
40x 40mesh
| .010in/.254mm
| .0150in/.38mm
| 36.0
|
60x 60mesh
| .0075in/.191mm
| .0092in/.23mm
| 23.7
|
80x 80mesh
| .0065in/.165mm
| .0060in/.15mm
| 23.0
|
80x 80mesh
| .0055in/.140mm
| .0070in/.18mm
| 31.4
|
100 x 100mesh
| .0045in/.114mm
| .0055in/.14mm
| 30.3
|
100 x 100mesh
| .004in/.102mm
| .0060in/15mm
| 36.0
|
100 x 100mesh
| .0035in/0.089mm
| .0065in/.17mm
| 42.3
|
>>
