Automatic V Folding Facial Tissue Paper Production Making Machine Complete Line

Product Description

Automatic Facial Tissue Paper Prodution Line

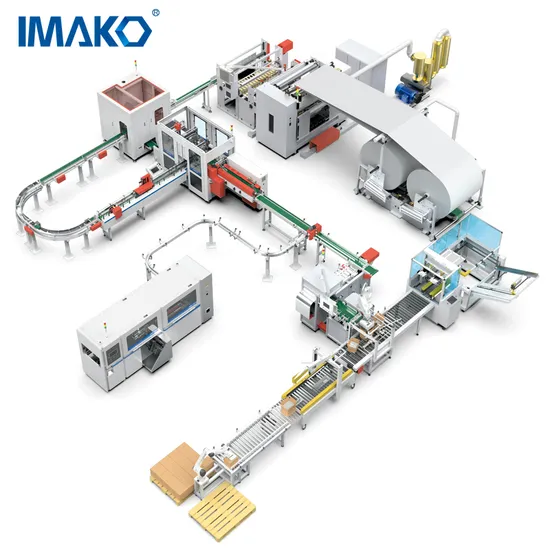

Three-in-one facial tissues Complete production line from jumbo roll to palletizing.
This automatic production line can complete the extraction of facial tissues from jumbo roll, small package, medium package, box packing and finished product pallet.
It achieves flexible production of regular PE bag specification finished products, e-commerce express bag specification finished products, small bag packaging finished products;
The effective maximum capacity output of the whole line: 200 packs/min
1, Facial tissue napkin paper non-woven fabrics.folding machine
★TfF-1500 automatic paper taking and folding machine can complete automatic folding, stacking and sorting of tissues and non-woven fabrics.
★The whole line adopts several servos control drive, precise stacking count to improve efficiency and product pass rate.
★It is simple to operate. Specification conversion can be completed by setting parameters.
★Pre-pressing finishing and servo turning mechanism are configured to ensure the products are neat and smooth.

Scope of application	V Folded tissue, non-woven fabric		Embossing unit selection	Common embossed, four-sided embossing,Steel/rubber/wool roller embossing
Control mode of diskette mechanism	Servo-controlled drive		The compressed air	Bring your own
Width of base paper (mm)	1500~2050		Jumbo Roll ADAPTS to layers	2,3,4,5
Jumbo Roll Maximum size range (mm)	Diameter: 1500, width: 1500		Complete machine control system	Six axis servo drive control
Paper towel folding size	170/175/180/190	Please specify special size	Feature matching	Setting mechanism, turning mechanism, ultrasonic spray humidification, buffer paper storage frame
Paper ejector standard configuration	2 group	Additional requirements should be informed in advance	Count set	Touch screen Settings

2, Log Saw Cutting Machine
Cutting speed:280 cuts/min
Paper cutting specification:

length:90-210mm

width:80-110mm

height:25-100mm

TC-280 main parameter configuration
Control system	PLC program control,Servo drive,Touch screen operation		Outer diameter of blade (mm)	Φ610mm(min.Φ400mm)
Feeding mode	servo drive, Synchronous positioning transmission by synchronous belt		Compressed air (mpa)	0.5Mpa(provided by buyer)
Cutting mode	360° rotating and cut off continuously		Power	380V/50Hz
Excision of roll paper head and end system	PLC system control,operating in touch screen	The length of paper head and end:15mm-25mm	Total power (KW)	6.6KW
Cutting precision	Cut off error <1mm		Machine size(mm)	L1500×W1500×H1700
Knife grinding system	Automatic knife grinding ,setting parameters in touch screen		Machine weight(KG)	1500

3, Facial Tissue Napkin Hand Towel Packing Machine
Max. working speed: 180 packs/min
Packaging range(mm) : L(95~210) /W(80~100) /H(30~100)

TP-T450 main parameter configuration
Scope of application	Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper	Power supply	380V/50Hz
Feeding mode	ASF multi - stage intelligent feeding system	Total power (KW)	12.42
Machine size(mm)	L4150*W4046*H1600	Machine noise (dB)	≤85
Machine weigh(KG)	3000	Perforation option	Straight line / Oval shape form	Alternative
Film thickness (mm)	0.04-0.05	Packaging material	CPP,PE&Complex film
Film roll Max. range(mm)	Diameter:≤500,Width:340	Movement control mode	16 servo shafts positioning control
Compressed air (mpa)	Air source≥0.5	Special configuration	Three shaping function units,Electronic handwheel adjustment Unit (All units can operate independently)

4,Automatic Tissue Paper Bundle Packing Machine
Max Working Speed: 28 bundle/min
Packing range (mm) : Length (180-500)/width (120-420)/height (85-110)

TP-B30T main parameter configuration
Scope of application	Single pack facial tissue
Packing style	1x3,1x4,1x5,1x6 2x3,2x4,2x5,2x6 3x3,3x4,3x5,3x6
Bag install mode	Dual bag racks
Bag storage quantity	≤ 300/bags
Machine weight (KG)	1800
Machine size	L3355 *W1580 *H1738
Bag type	CPP,PE
Compressed air (mpa)	Air source≥0.6 Air flow≥300L / min
Power supply	308V / 50HZ
Sealing mode	Heating tube heating to seal
Gusset forming mode	Vacuum mold forming

5,Box Packing Machine
Max. working speed: 10 boxes/min (related to packing specifications)

ZS-15T main parameter configuration
Scope of application	Carton packing for single pack facial tissue
Packing style	The top side should allow vacuum suction
Compressed Air (mpa)	Air source≥0.6MPA,Air flow: 300L/min
Power supply	380V/50HZ +10%
Carton placement method	Vertical standing
Carton storage quantity	≤100carton sheets (can be customized)
Carton sheet specifications	3-5 layers of corrugated paper, the box with creases needs to be stamped and formed in advance
Carton sealing mode	One-line sealing tape machine sealing	Optional I-seal

About Us
Imako are professional packing machine designer and manufacture.
IMAKO has been dedicated to sanitary tissue packaging machinery industry for over 10 years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
Attention:
Paymentterm:T/T,30%deposit and 70% before delivery.
Delivery:50 days upon receiving deposit.
Guarantee:One year.(The following problems are excluded from the warranty:due to accidents,misuse,misapplication,storagedamage,negligence,or modification to the Equipment or its components.)
After service:If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.

---
