- Box corer 1000 cm² Sediment Samplers

Product Description

Product Description
Sediment Samplers Application

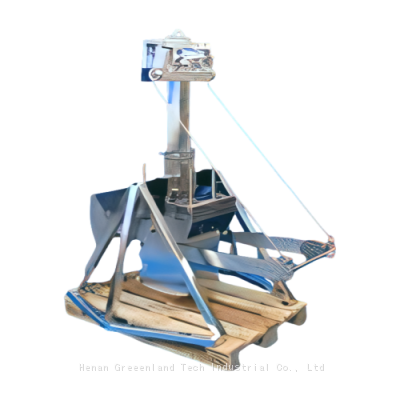

KC Denmark's box corer's series is a marine geological sampling tool for soft sediment in lakes or oceans. It is deployed from a research vessel with a deep-sea wire and suitable for any water depth. It is designed for a minimum of disturbance of the sediment surface by bow wave effects which is important for quantitative investigations of the benthos micro- to macrofauna, geochemical processes, sampling of bottom water or sedimentology.
Sediment Samplers Easy handling
When the rack is lifted by a winch the integrated handles allow an easy and swift guidance of the box corer.
The main racks for 600 cm² and 1000 cm² box corers are identical; the only difference of the two bottom samplers is the size of the corer tube as well as the inner shovel.
Sediment Samplers Lead weights
The Sediment Samplers weight base is configurable with up to 18 lead weights, each 20 kg (max. 360 kg). Larger capacity on request.
Sediment Samplers Specification

Box Corer frame	50 x 50 x 5 mm square tube, AISI 316 stainless steel.
Mounting and releaser	AISI 316 stainless steel.
Sample tube	4 mm electro polished AISI 316 stainless steel.
Shovel and shovel arms	AISI 316 stainless steel.
Wires	AISI 316 stainless steel.
Wire guidance	Brass/Polypropylene.
Weights	Lead.
Dimensions:
Frame:
Length and width:	110 x 80 cm.
Height	110 cm.
Total height of fully mounted Box Corer	210 cm.
Total height of box corer when the sample has been taken	360 cm.
Shipping, dimensions and weights	162 x 92 x 158 cm, gross weight 510 kg.
Sample tubes (optional)
600 cm2:	29 x 20,7 cm.
1000 cm2:	34,5 x 29 cm.
Weight:
Total weight of complete Box Corer with 6 weights (600 cm2):	App. 290 kg.
Total weight of complete Box Corer with 6 weights (1000 cm2):	App. 300 kg.
Weight of each lead weight on weight station:	20 kg.

---
